SKU: CUC215-48

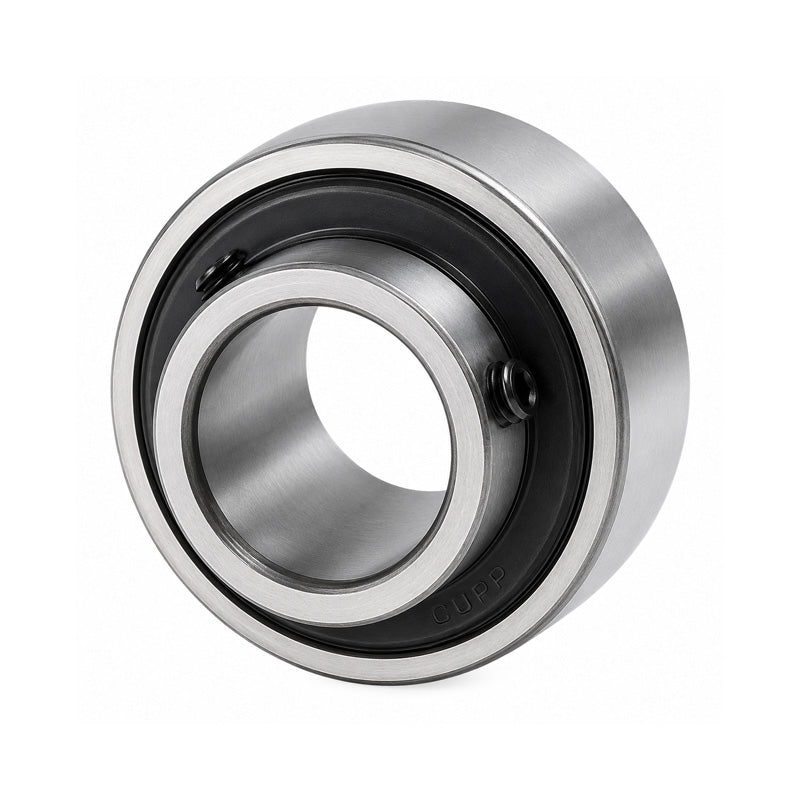

CUC215-48 Imperial Cylindrical Bearing Insert with 3 inch Bore 130mm Outside Dia
CUC215-48 Imperial Cylindrical Bearing Insert with 3 inch Bore 130mm Outside Dia
Equivalent to: UR215-48 RB215-48
Out of stock
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 76.2mm = 3 (3) inch
- Outside Diameter:
- 130mm
Technical
Technical
| d | 3 inch |
|---|---|
| D | 130mm |
| Bi | 77.8mm |
| Be | 30mm |
| N | 33.3mm |
| M | 44.5mm |
| G | 12mm |
| ds | M12x1.5, 7/16-20UNF |
| Dynamic Load | 66000 N |
| Static Load | 49500 N |
| Weight | 2.12 kg |
