SKU: CUC201-8

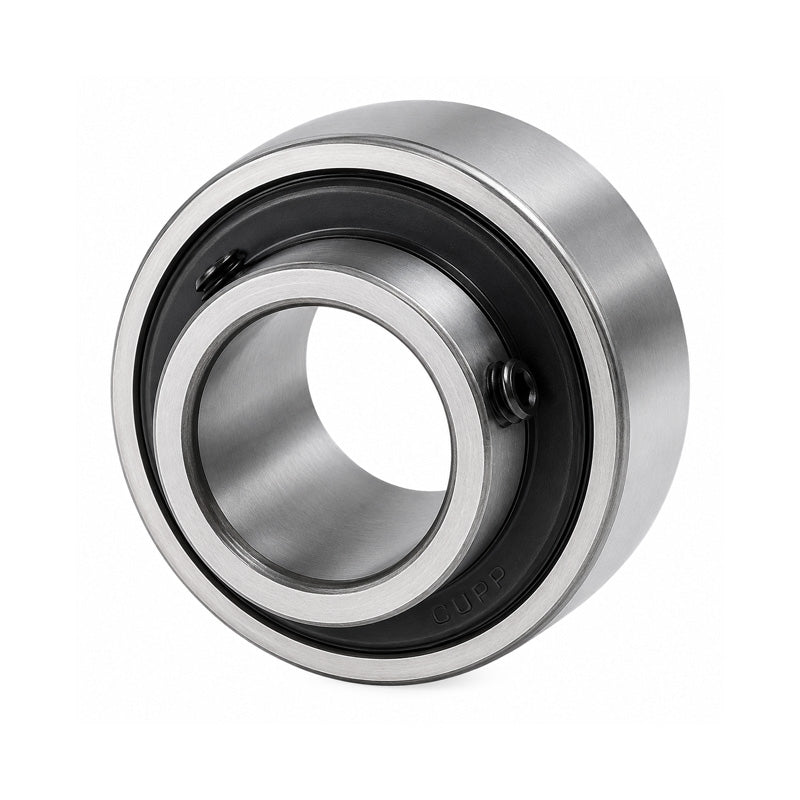

CUC201-8 Imperial Cylindrical Bearing Insert with 1/2 inch Bore 47mm Outside Dia
CUC201-8 Imperial Cylindrical Bearing Insert with 1/2 inch Bore 47mm Outside Dia
Equivalent to: UR201-8 RB201-8
Out of stock
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 47mm
Technical
Technical
| d | 1/2 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| N | 12.7mm |
| M | 18.3mm |
| G | 4.8mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 12800 N |
| Static Load | 6650 N |
| Weight | 0.19 kg |
