SKU: CSC-22-SB-IKO
IKO CSC22SB Hex Head Stainless Steel Crowned Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
IKO CSC22SB Hex Head Stainless Steel Crowned Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|

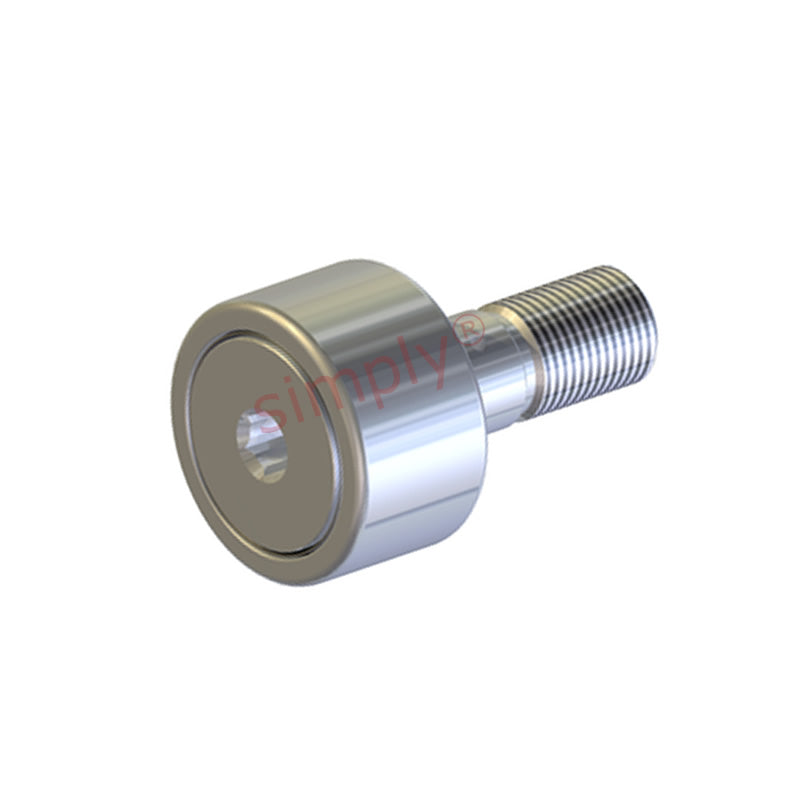

Stainless Steel Crowned Cam Follower with Hex Head: These bearings are dimensionally interchangeable with standard cam followers offered by other major manufacturers. The Seal Tight design minimises contamination to keep machinery running longer. These bearings contain a food-grade lubricant to ensure compatibility with any application. Benefits: Minimises contamination, re-lubricatable, high precision manufacturing. Note: Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Width:
- 11.13mm = 0.438 inch
- Pitch:
- UNF 1/4-28
Technical
Technical
| A | 0.6875 inch |
|---|---|
| B | 0.438 inch |
| C | 0.25 inch |
| D | 0.75 inch |
| E | 39/125 inch |
| Thread class 2A F | 1/4-28 UNF |
| Min boss diameter | 23/64 inch |
| Recommended bore | 0.25 inch |
| Recommended torque | 18 lbf-in |
| Basic dynamic rating | 860 lbs |
| Max static capacity | 600 lbs |
