SKU: CSB.209-27

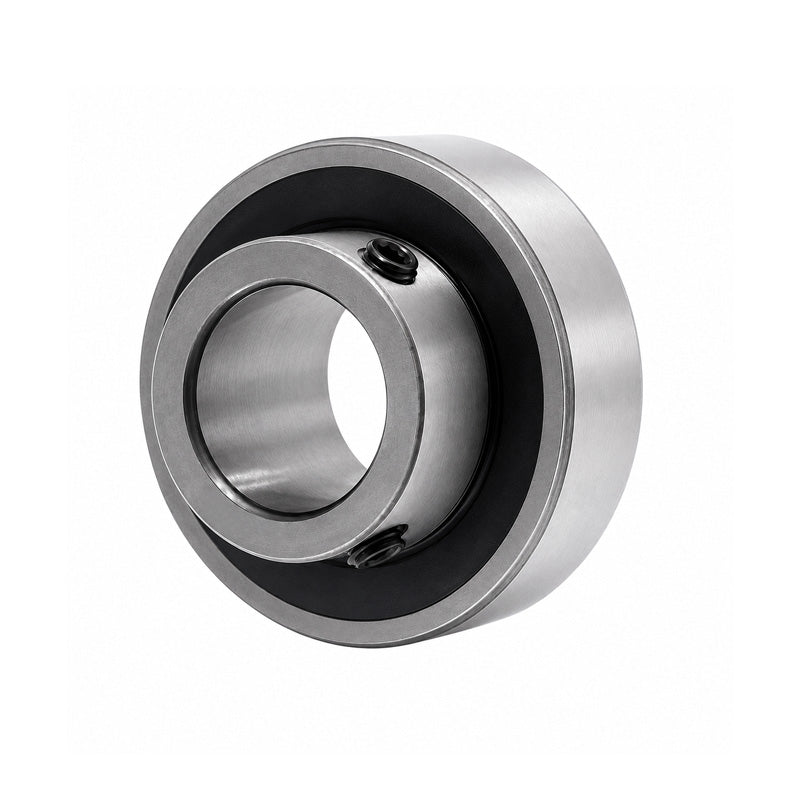

CSB209-27 Imperial Bearing Insert with 1-11/16 inch Bore 85mm Outside Dia
CSB209-27 Imperial Bearing Insert with 1-11/16 inch Bore 85mm Outside Dia
Out of stock
Share this product
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 85mm
- Style:
- CSB
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| Be | 19mm |
| D | 85mm |
| Bi | 41.2mm |
| n | 9.5mm |
| m | 31.7mm |
| G | 8.2mm |
| h | 6.3mm |
| Grub screw | 5/16-24 UNF |
| Weight | 0.8 kg |
| Dynamic load | 3260 kgf |
| Static load | 2450 kgf |
