SKU: CSA.210-30

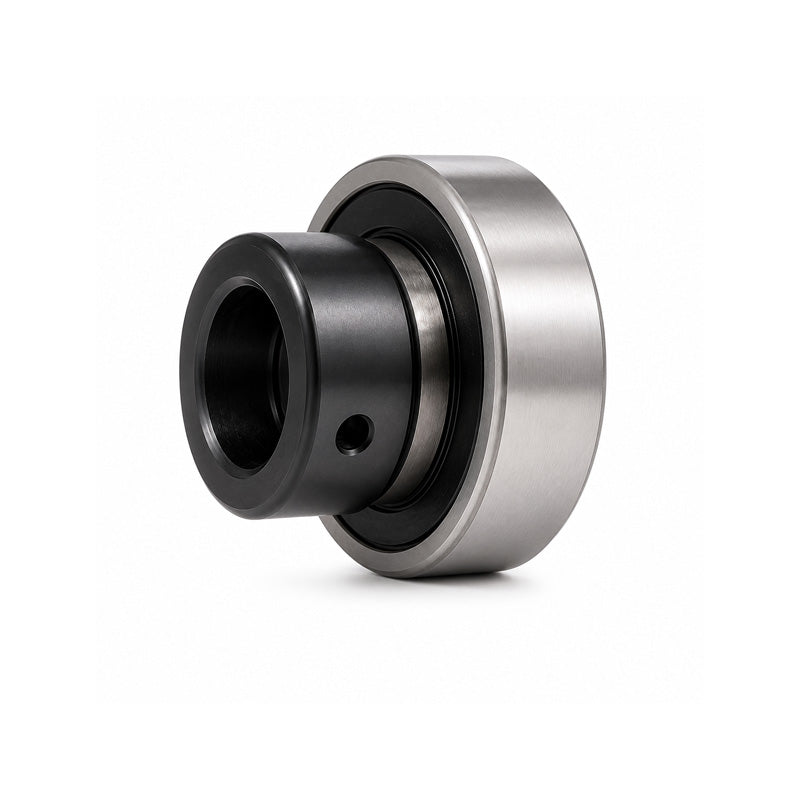

CSA210-30 Imperial Bearing Insert with Locking Collar 1-7/8 inch Bore 90mm Outside Dia
CSA210-30 Imperial Bearing Insert with Locking Collar 1-7/8 inch Bore 90mm Outside Dia
Out of stock
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Outside Diameter:
- 90mm
- Style:
- CSA
Technical
Technical
| d | 1-7/8 inch |
|---|---|
| Be | 20mm |
| D | 90mm |
| z | 30.2mm |
| n | 10mm |
| m | 20.2mm |
| Bi | 43.7mm |
| k | 69.9mm |
| H | 18.3mm |
| G | 6.5mm |
| h | 6.5mm |
| Grub screw | 5/16"-24UNF |
| Weight | 0.83 kg |
| Dynamic load | 3500 kgf |
| Static load | 2300 kgf |
