SKU: CNB-320-SB-IKO

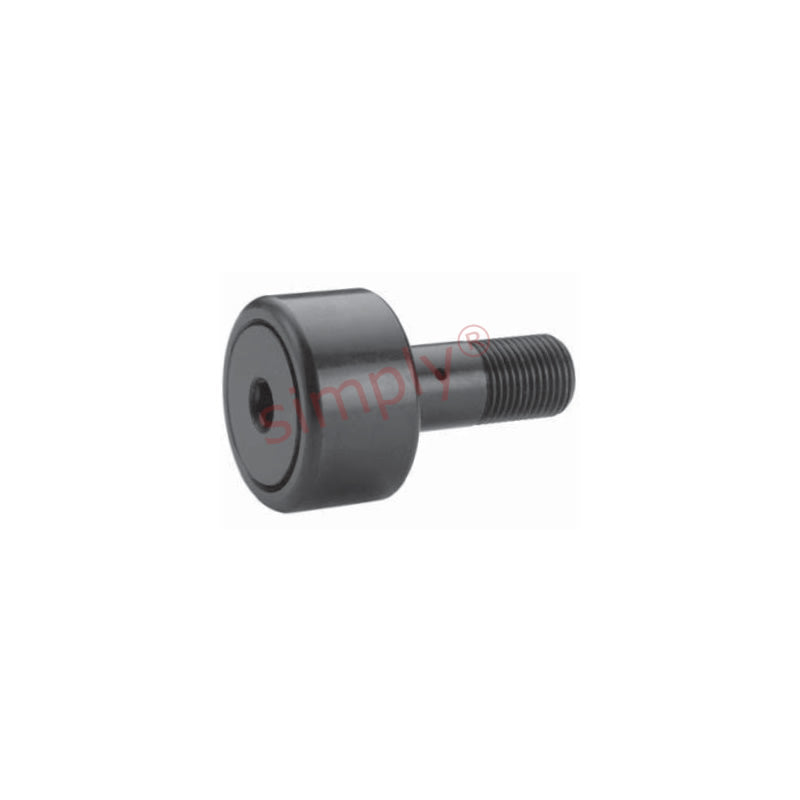

IKO CNB320SB Hex Head Sealed Cylindrical Cam Follower 10 inch Outside Diameter Allow 7-10 Days
IKO CNB320SB Hex Head Sealed Cylindrical Cam Follower 10 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 254mm = 10 inch
- Width:
- 133.35mm = 5.25 (5-1/4) inch
- Pitch:
- UNF 3-1/2-4
Technical
Technical
| A | 10 inch |
|---|---|
| B | 5.25 inch |
| C | 4.25 inch |
| D | 10 inch |
| E | 4.75 inch |
| Thread class 2A F | 3-1/2-4 UNC |
| Min boss diameter | 5-59/64 inch |
| Recommended bore | 4.25 inch |
| Recommended torque | 5000 lbf-in |
| Max static capacity | 215565 lbs |
| Basic dynamic rating | 131545 lbs |
