SKU: CNB-112-SB-IKO

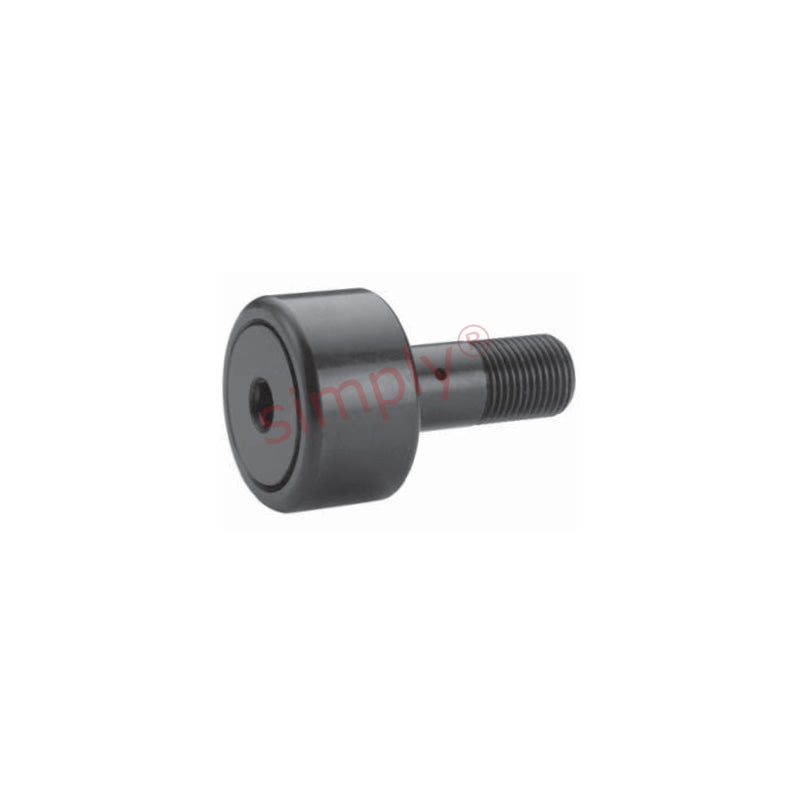

IKO CNB112SB Hex Head Sealed Cylindrical Cam Follower 3-1/2 inch Outside Diameter
IKO CNB112SB Hex Head Sealed Cylindrical Cam Follower 3-1/2 inch Outside Diameter
Out of stock
Description
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Width:
- 50.8mm = 2 inch
- Pitch:
- UNF 1-3/8-12
Technical
Technical
| A | 3.5 inch |
|---|---|
| B | 2 inch |
| C | 1.375 inch |
| D | 2.75 inch |
| E | 1.375 inch |
| Thread class 2A F | 1-3/8-12 UNF |
| G | 11/16 inch |
| H | 1/8 inch |
| J | 1/4 inch |
| Min boss diameter | 1-59/64 inch |
| Recommended bore | 1.375 inch |
| Recommended torque | 4200 lbf-in |
| Max static capacity | 31625 lbs |
| Basic dynamic rating | 22800 lbs |
