SKU: CM-UKT209ED1/HE2309X-NTN

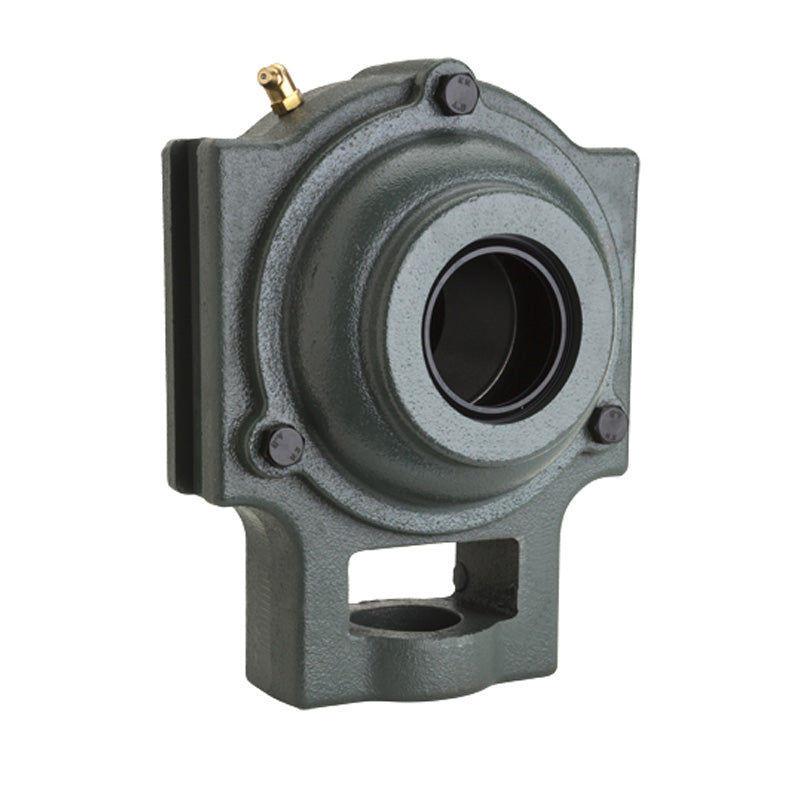

NTN CM-UKT209ED1/HE2309X Imperial Cast Iron Take Up Unit with Cast Iron Cover - Closed Version - Insert and Adaptor Sleeve Fits 1-1/2 inch Shaft - Allow 2-3 Days
NTN CM-UKT209ED1/HE2309X Imperial Cast Iron Take Up Unit with Cast Iron Cover - Closed Version - Insert and Adaptor Sleeve Fits 1-1/2 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 1-1/2 inch |
|---|---|
| N<sub>1</sub> | 3/4 inch |
| L<sub>2</sub> | 23/32 inch |
| H<sub>2</sub> | 3-9/32 inch |
| N<sub>2</sub> | 1-15/16 inch |
| N | 1-5/32 inch |
| L<sub>3</sub> | 3-9/32 inch |
| A<sub>1</sub> | 0.63 inch |
| H<sub>1</sub> | 4-1/64 inch |
| H | 4-19/32 inch |
| A<sub>2</sub> | 1-3/8 inch |
| A | 1-15/16 inch |
| r | 2-1/4 inch |
| L<sub>1</sub> | 3-15/32 inch |
| B<sub>1</sub> | 1.969 inch |
| t<sub>2</sub> | 5/8 inch |
| L<sub>4</sub> | 5-23/32 inch |
| A<sub>5</sub> | 3-3/4 inch |
| Mass | 7.7 lbs |
