SKU: CM-UCPX13-209D1-NTN

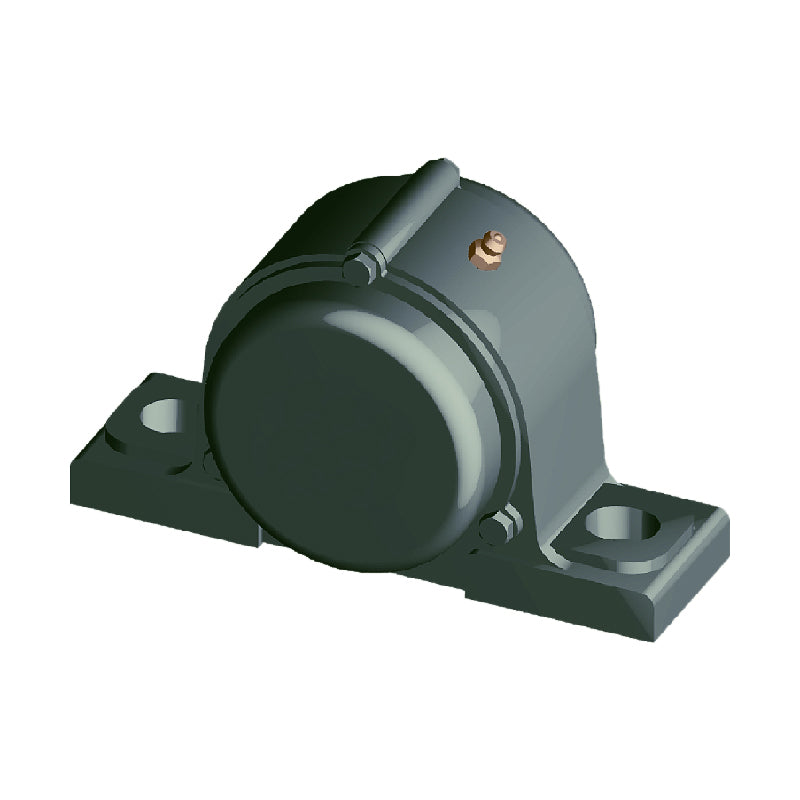

NTN CM-UCPX13-209D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-9/16 inch Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCPX13-209D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-9/16 inch Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65.09mm = 2.563 (2-9/16) inch
- Style:
- UCPX
- Bolt Hole Centres:
- 8 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-9/16 inch |
| H | 3 inch |
| L | 11-1/4 inch |
| J | 8 inch |
| A | 3-9/32 inch |
| N | 31/32 inch |
| N<sub>1</sub> | 1-3/32 inch |
| H<sub>1</sub> | 1-5/16 inch |
| H<sub>2</sub> | 6-1/16 inch |
| L<sub>1</sub> | 3-5/32 inch |
| B | 2.937 inch |
| S | 1.189 inch |
| t<sub>2</sub> | 21/32 inch |
| H<sub>3</sub> | 6-1/4 inch |
| A<sub>5</sub> | 5-5/16 inch |
| Fixing bolt | 3/4 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 69 kN |
| Static load C<sub>0r</sub> | 44 kN |
| Fatigue load limit C<sub>u</sub> | 3.45 kN |
| --- | Unit information |
| Mass | 21 lbs |
