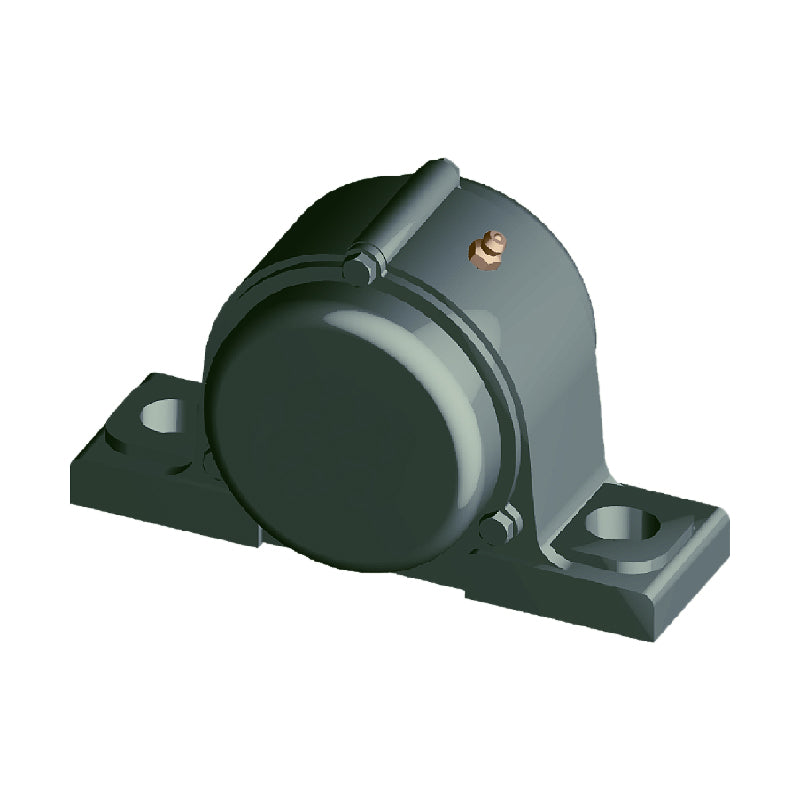

NTN CM-UCP308-109D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-9/16 inch Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing

Brand / Quality:

NTN - High Quality

Inside Diameter:

39.69mm = 1.563 (1-9/16) inch

Style:

UCP

Bolt Hole Centres:

6-11/16 inch
