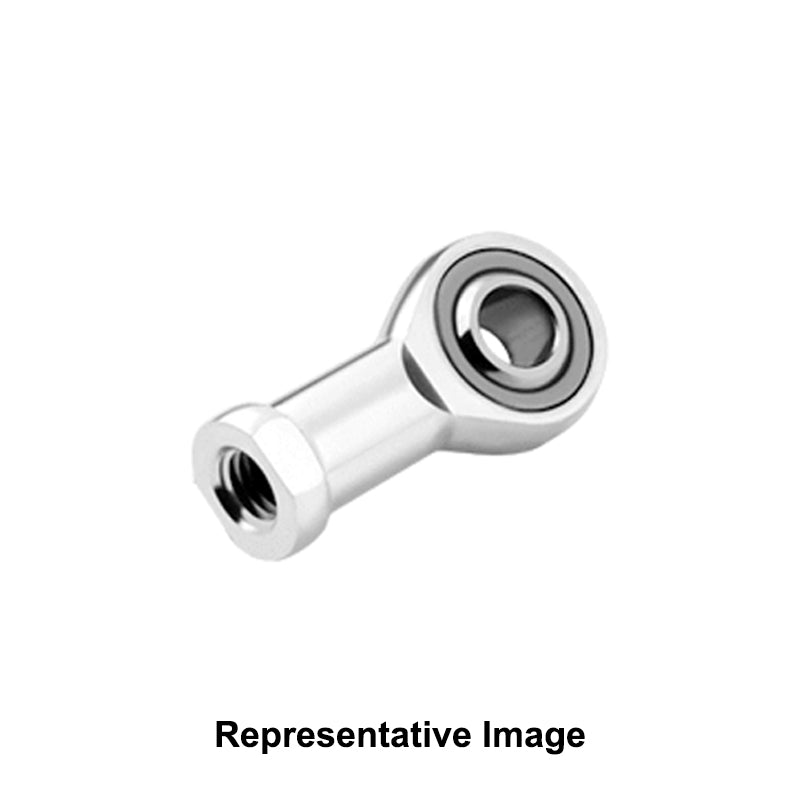

Chiavette CFPXL25PN Left Hand Stainless Steel / PTFE Lined Female Rod End for Pneumatic Cylinders 25mm Bore M24x2 Thread - Allow 2-3 Days

Chiavette (Tesno) Stainless Steel Rod Ends: Stainless steel rod ends are high-quality products and are made according to ISO 12240-4 K series and ISO 12240-1 K series respectively. They are maintenance-free and employ a coupling of tempered, polished stainless steel (inner ring) on stainless steel with PTFE (bonded to the inner surface of the outer ring), which guarantees lubrication during the operation. The support of the rod end is also produced in stainless steel. The bronze outer ring containing the PTFE liner is cold-formed on the inner ring.
Benefits: High loads and maintenance-free, Suitable in case of small pivoting angles, dynamic load peaks and movements wih a low friction coefficient

These products are certified to CETOP standards (ISO 8139), ensuring quality and compatibility with European hydraulic systems. CETOP, the European Committee for Hydraulic and Pneumatic Transmission, sets rigorous standards for fluid power components, guaranteeing reliability and performance in industrial applications

Brand / Quality:

Chiavette - High Quality

Thread Size:

M24x2

Thread M / F:

Female

Thread Direction:

Left Hand

Inside Diameter:

25mm

Material:

PTFE Lined
