SKU: C4028-2CS5V-SKF

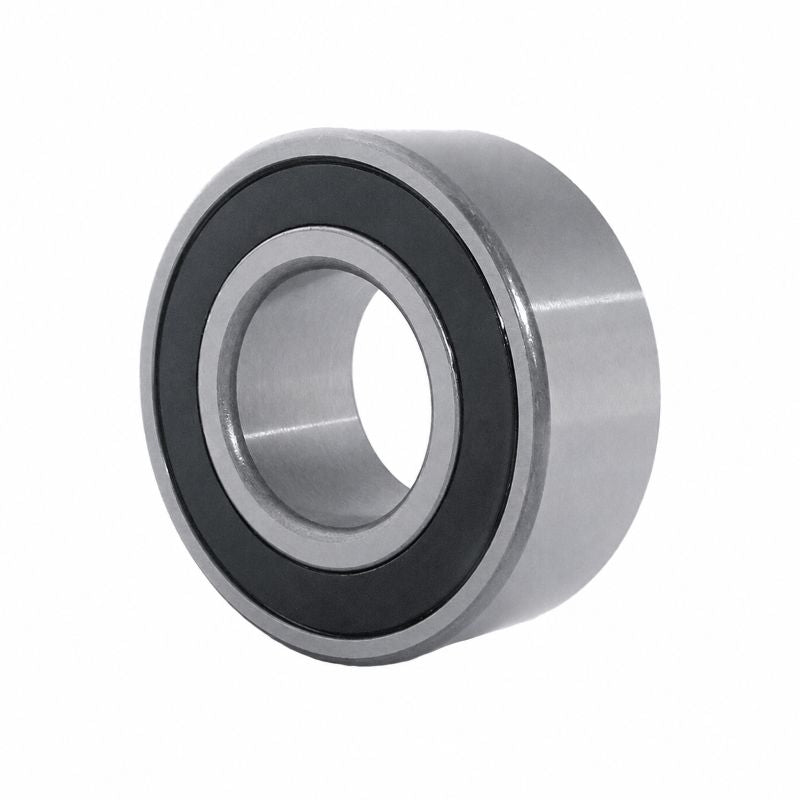

SKF C40282CS5V Sealed Carb Toroidal Roller Bearing 140x210x69mm
SKF C40282CS5V Sealed Carb Toroidal Roller Bearing 140x210x69mm
Out of stock
Share this product
Description
Description
|
SKF Sealed Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 210mm
- Width:
- 69mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 140mm |
|---|---|
| D | 210mm |
| B | 69mm |
| Dynamic load C | 570 kN |
| Static load Co | 900 kN |
| Fatigue load limit Pu | 88 kN |
| Limiting speed | 67 rpm |
| d2 | 163mm |
| D1 | 193mm |
| r1r2 min | 2mm |
| s1 | 8.7mm |
| da min | 149mm |
| da max | 162mm |
| Da min | 201mm |
| ra max | 2mm |
| Misalignment factor k1 | 0.133 |
| Operating clearance factor k2 | 0.089 |
| Weight | 7.9 kg |
