SKU: C-UCPX16-304D1-NTN

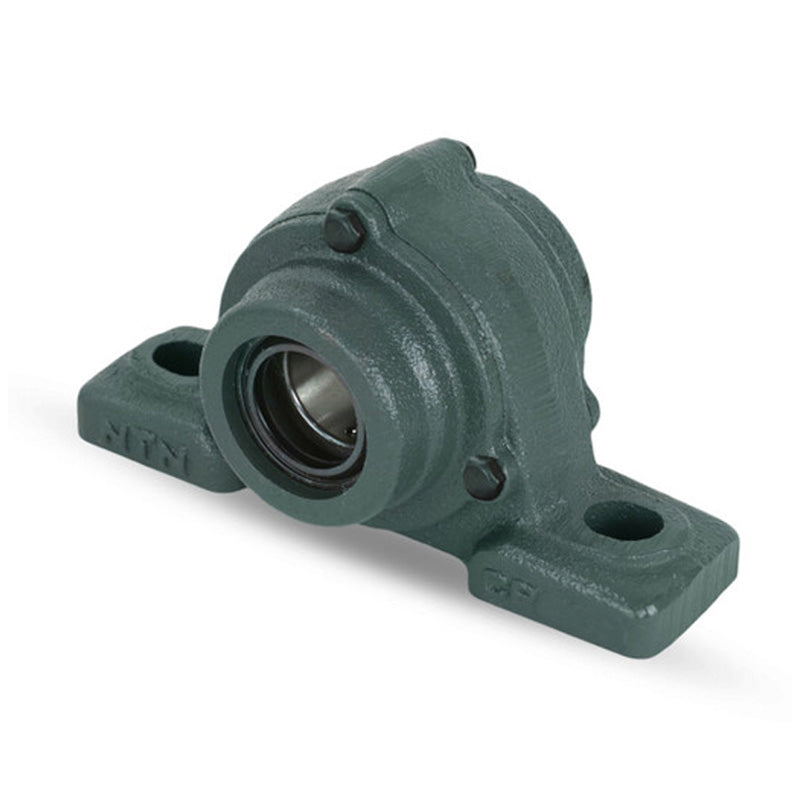

NTN C-UCPX16-304D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-1/4 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCPX16-304D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-1/4 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Style:
- UCPX
- Bolt Hole Centres:
- 11-5/32 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 3-1/4 inch |
| H | 4 inch |
| L | 15 inch |
| J | 11-5/32 inch |
| A | 4-1/32 inch |
| N | 1-1/16 inch |
| N<sub>1</sub> | 1-3/16 inch |
| H<sub>1</sub> | 1-9/16 inch |
| H<sub>2</sub> | 7-5/8 inch |
| L<sub>1</sub> | 4-11/32 inch |
| B | 3.374 inch |
| S | 1.343 inch |
| H<sub>3</sub> | 7-25/32 inch |
| A<sub>5</sub> | 6-3/32 inch |
| Fixing bolt | 7/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 92 kN |
| Static load C<sub>0r</sub> | 64 kN |
| Fatigue load limit C<sub>u</sub> | 4.6 kN |
| --- | Unit information |
| Mass | 37 lbs |
