SKU: C-UCFL308-108D1-NTN

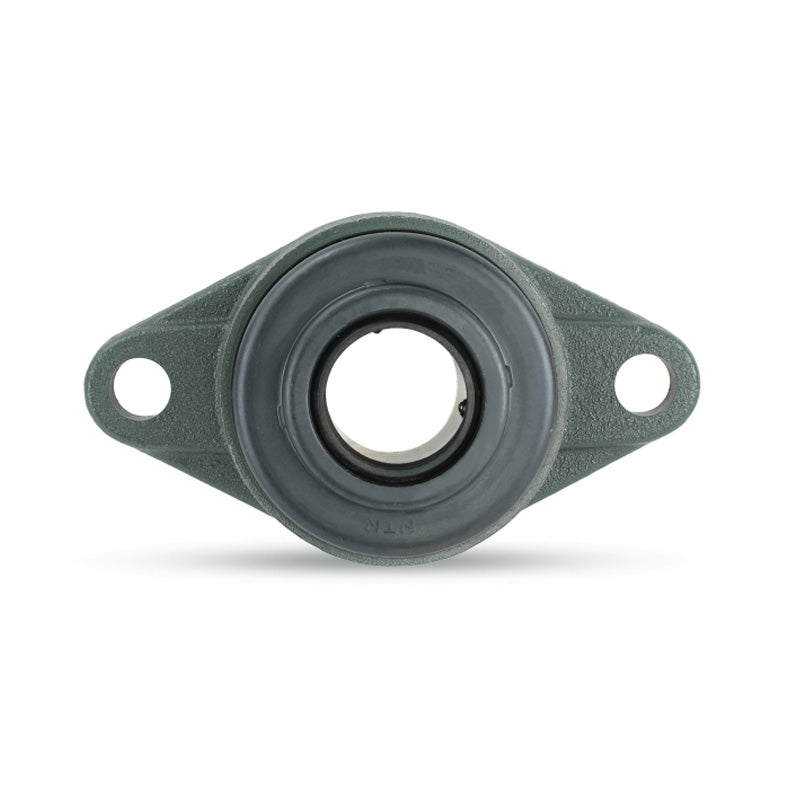

NTN C-UCFL308-108D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/2 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days

NTN C-UCFL308-108D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/2 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 1-1/2 inch
H 7-7/8 inch
J 6-7/32 inch
A<sub>2</sub> 29/32 inch
A<sub>1</sub> 21/32 inch
A 1-9/16 inch
N 29/32 inch
L 4-13/32 inch
B 2.0472 inch
S 0.748 inch
A<sub>5</sub> 3 inch
L<sub>1</sub> 4-13/16 inch
L<sub>2</sub> 2-7/32 inch
Fixing bolt 3/4 inch
--- Load rating
Dynamic load C<sub>r</sub> 45 kN
Static load C<sub>0r</sub> 24 kN
Fatigue load limit C<sub>u</sub> 1.83 kN
--- Unit information
Mass 6.4 lbs
