SKU: C-UCF204-012D1-NTN

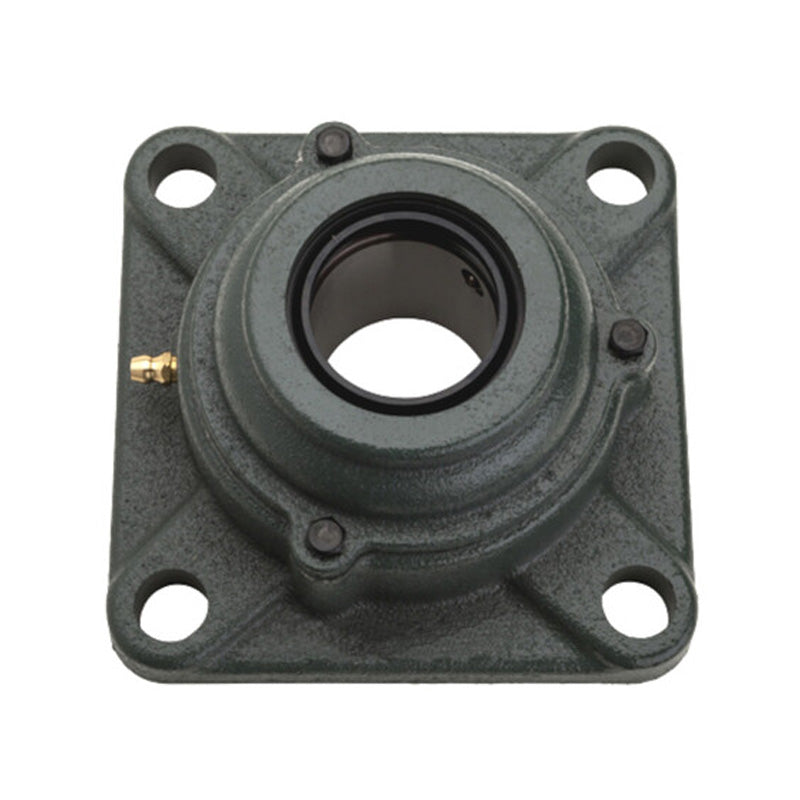

NTN C-UCF204-012D1 Imperial Four Bolt Square Cast Iron Flange Housing with 3/4 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCF204-012D1 Imperial Four Bolt Square Cast Iron Flange Housing with 3/4 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|

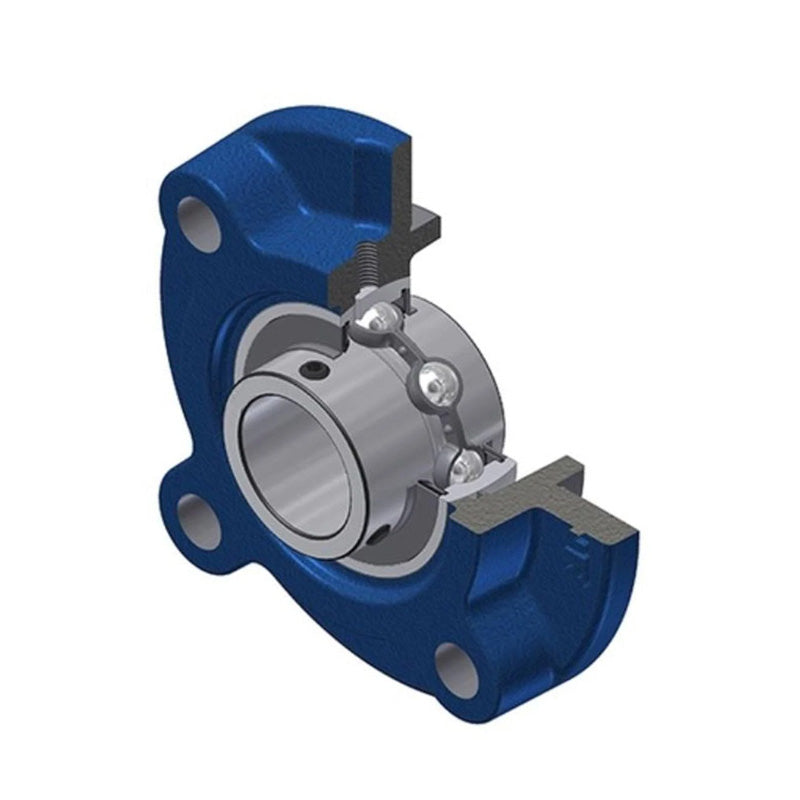

UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- UCF
- Bolt Hole Centres:
- 2-33/64 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 3/4 inch |
| L | 3-3/8 inch |
| J | 2-33/64 inch |
| A<sub>2</sub> | 19/32 inch |
| A<sub>1</sub> | 7/16 inch |
| A | 1 inch |
| N | 15/32 inch |
| B | 1.2205 inch |
| S | 0.5 inch |
| A<sub>5</sub> | 1-13/16 inch |
| Fixing bolt | 3/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 14.2 kN |
| Static load C<sub>0r</sub> | 6.65 kN |
| Fatigue load limit C<sub>u</sub> | 0.505 kN |
| --- | Unit information |
| Mass | 1.8 lbs |
