SKU: BK2518RS-EU

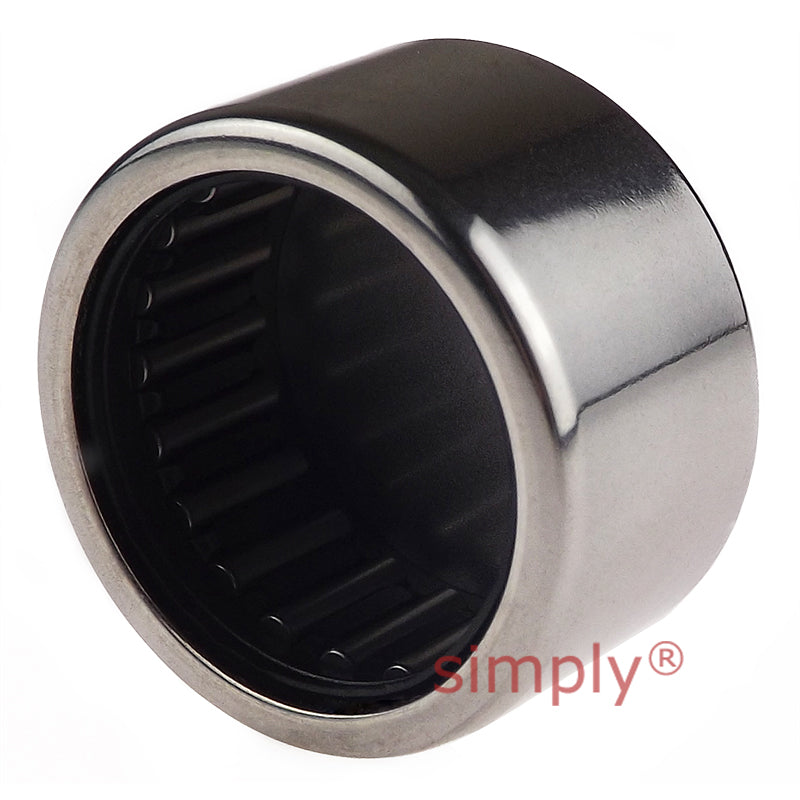

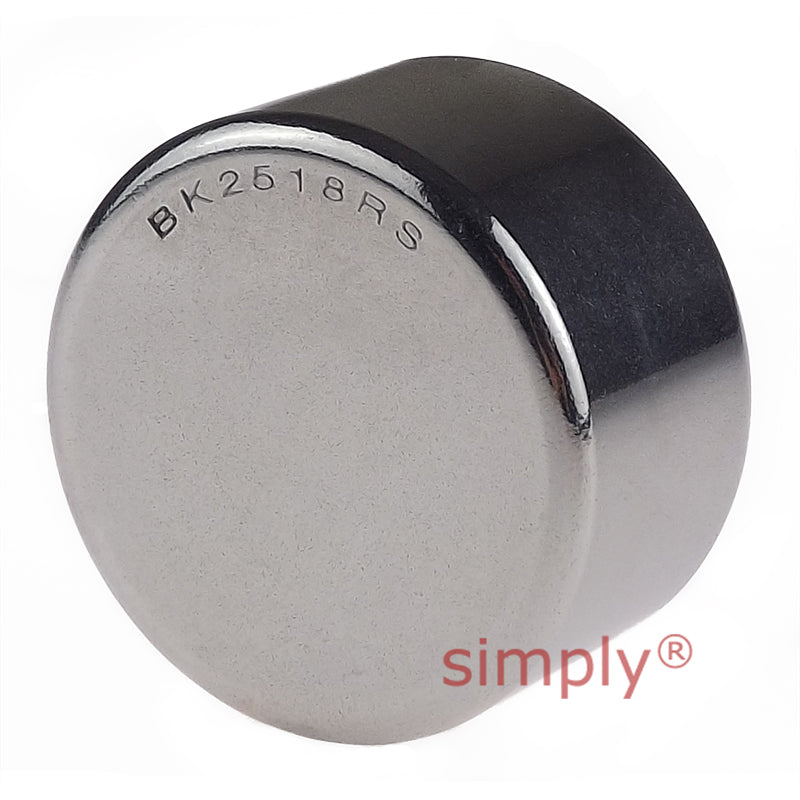

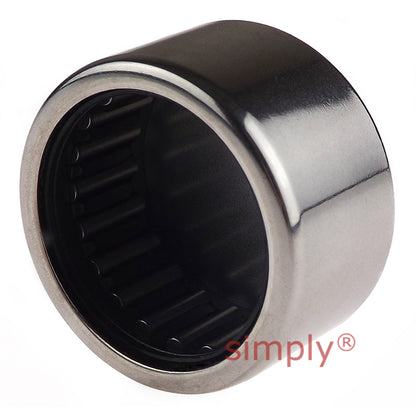

BK2518RS Budget Drawn Cup Needle Roller Bearing with One Closed End 25x32x18mm
- Regular price
- €10,04 ex VAT
- Sale price
- €10,04
- Regular price
-
In stock
Quantity Price Breaks
10
€8,94
19
€8,43
29
€8,33
39
€8,23
49
€8,13
74
€8,03
99
€7,53
199
€7,43
249
€7,33
499
€7,23
999
€7,03
SKU:
BK2518RS-EU
BK2518RS Budget Drawn Cup Needle Roller Bearing with One Closed End 25x32x18mm
- Regular price
- €10,04 ex VAT
- Sale price
- €10,04
- Regular price
-
Description
|

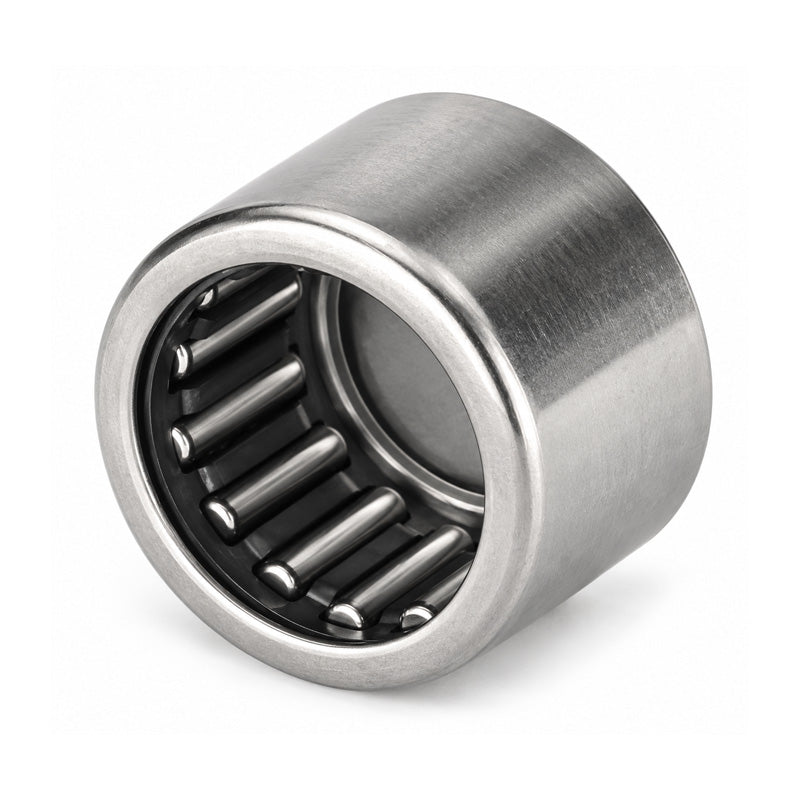

Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |

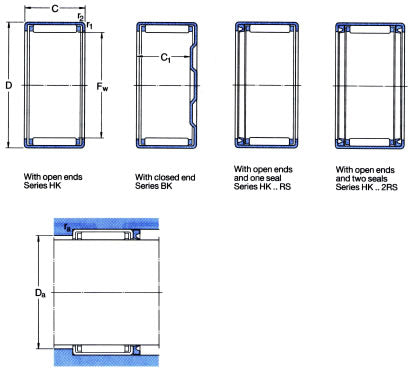

Technical
| Fw | = | 25mm |
| D | = | 32mm |
| C | = | 18mm |
| Dynamic load C | = | 15100 N |
| Static load Co | = | 24000 N |
| Fatigue load limit Pu | = | 2850 N |
| Speed in grease | = | 7000 rpm |
| C1 | = | 15.3mm |
| r1r2 min | = | 0.8mm |
| Da max | = | 27mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR20x25x16.5 |
| Weight | = | 34 g |
