SKU: BGSB358235.MB

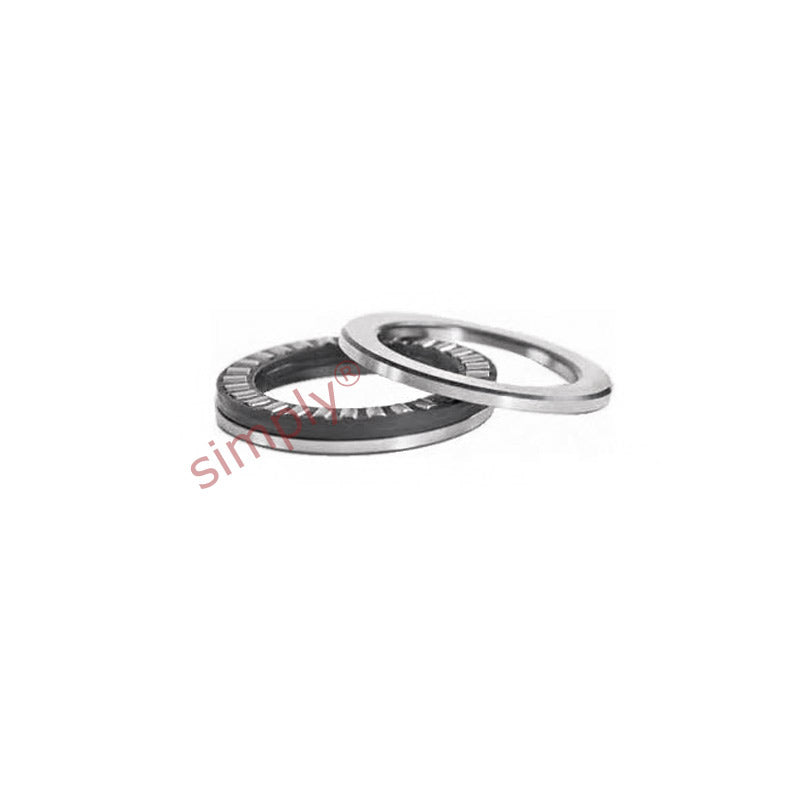

Major Brand BGSB358235 Cylindrical Roller Thrust Bearing 1200x1660x300mm
Major Brand BGSB358235 Cylindrical Roller Thrust Bearing 1200x1660x300mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 1200mm
- Outside Diameter:
- 1660mm
- Width:
- 300mm
Technical
Technical
| d | 1200mm |
|---|---|
| D | 1660mm |
| H | 300mm |
| Dynamic load C | 20800 kN |
| Static load Co | 127000 kN |
| Fatigue load limit Pu | 6200 kN |
| Min load factor A | 1300 |
| Reference speed | 53 rpm |
| Limiting speed | 110 rpm |
| Weight | 2140 kg |
