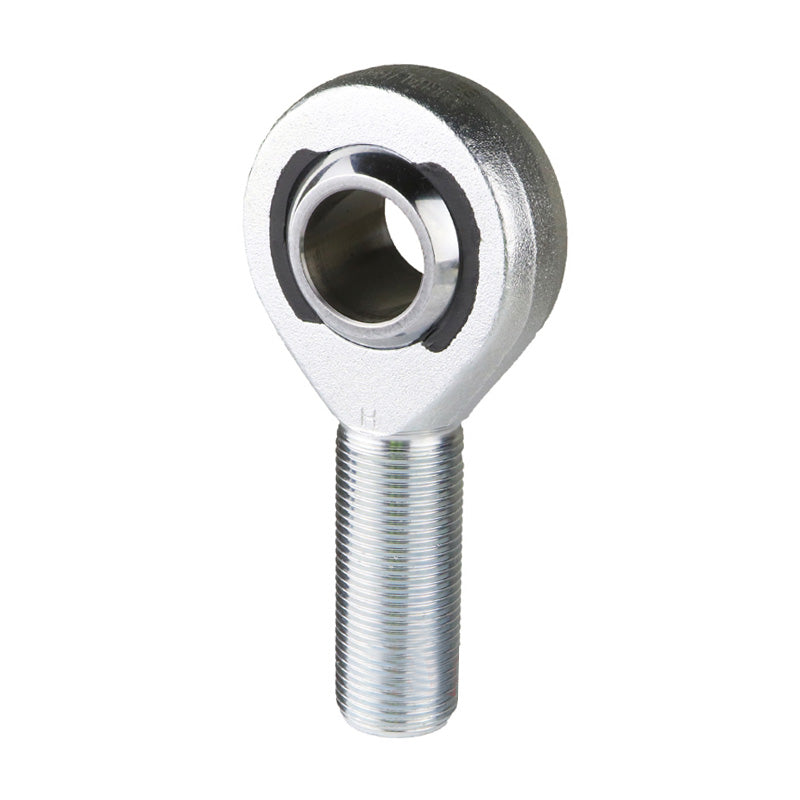

Durbal BEM20-60-501 Maintenance Free Right Hand Metric Stainless Steel / PTFE Lined Male Rod End M20x1.5 Thread

DURBAL Heavy-Duty Stainless Steel Male Rod Ends with Integral Spherical-Plain Bearing: Threaded male rod end consisting of a forged, hardened and electropolished stainless steel housing with a polyamide-PTFE-fibreglass-compound race and a stainless steel joint ball bearing. DURBAL-Glide (race) made of polyamide-PTFE-glass fibre compound, maintenance-free, encapsulates penetrating foreign particles. This fact and the greater overlay thickness compared to other sliding materials assure longer durability. Made of forged stainless steel, extremely high loads resistant and surface electropolished which ensures you a very high corrosion resistance. Temperature range: -30 deg C to +60 deg C.
Benefits: Radial clearance 0 – 10 µm, Suitable for use with impact loads, For use with small swivelling movements and at low speeds, Free from non-ferrous metals.

Brand / Quality:

Durbal - High Quality

Thread Size:

M20x1.5

Thread M / F:

Male

Thread Direction:

Right Hand

Inside Diameter:

20mm

Material:

PTFE Lined
