SKU: BB-626-B180-10-GL-C

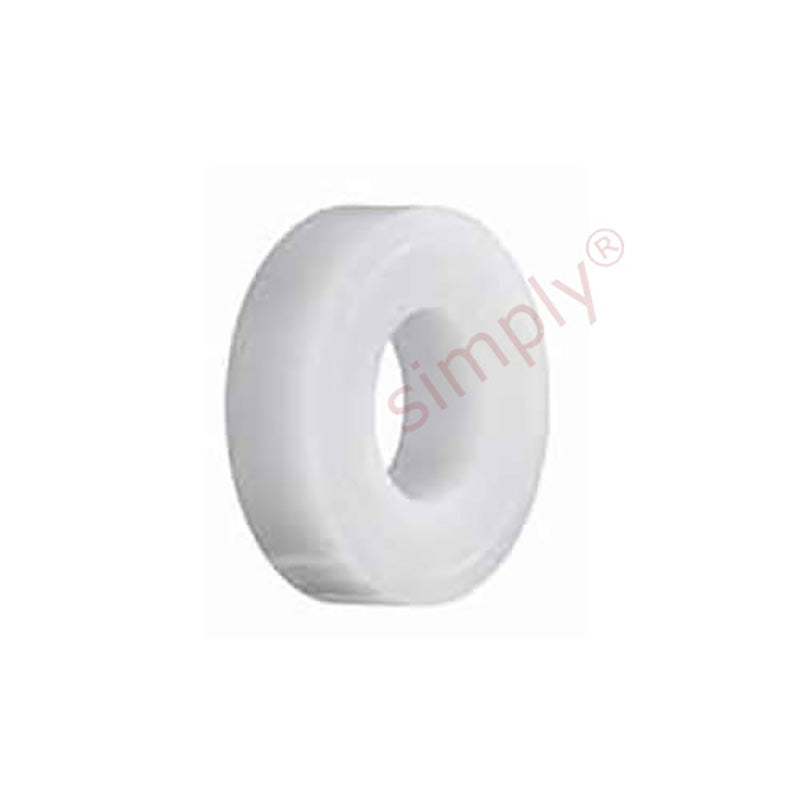

xiros xirodur BB626B18010GLC Polymer Ball Bearing with PA Cage and Glass Balls and Cover Plate 6x19x6mm - Allow 2-3 Days
xiros xirodur BB626B18010GLC Polymer Ball Bearing with PA Cage and Glass Balls and Cover Plate 6x19x6mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: This radial deep groove ball bearings consists of a polymer cage, glass balls and a cover plate. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, low friction. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 19mm
- Width:
- 6mm
- Seals / Shields:
- Cover Plate
- Clearance:
- * Standard
Technical
Technical

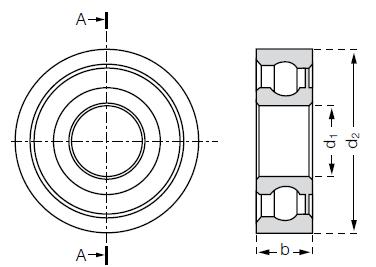

| d1 | 6mm |
|---|---|
| d2 | 19mm |
| b | 6mm |
| Max static axial load | 95 N |
| Static load capacity | 50 N |
| Dynamic load capacity | 70 N |
| Max speed | 2600 rpm |
| Race | B180 |
| Cage | PA |
| Ball material | Glass |
