SKU: BB-6200-B180-10-GL

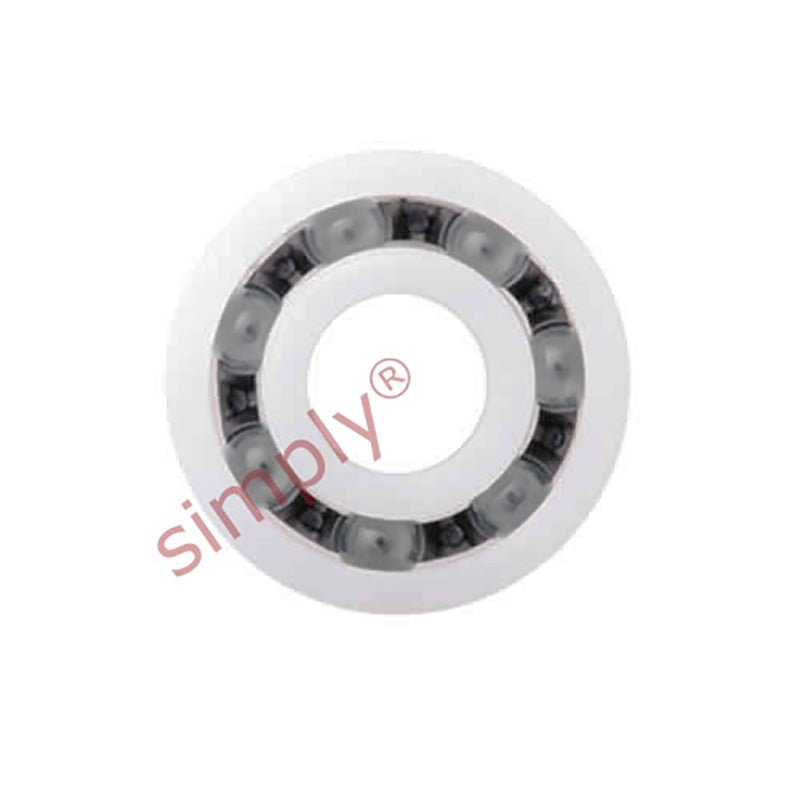

xiros xirodur BB6200B18010GL Open Type Radial Groove Ball Bearing with PA Cage and Glass Balls 10x30x9mm - Allow 2-3 Days
xiros xirodur BB6200B18010GL Open Type Radial Groove Ball Bearing with PA Cage and Glass Balls 10x30x9mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and glass balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1 | 10mm |
|---|---|
| d2 | 30mm |
| b1 | 9mm |
| Max static load capacity | 285 N |
| Static load capacity | 85 N |
| Dynamic load capacity | 119 N |
| Max speed | 1900 rpm |
| Race | B180 |
| Cage | PA |
| Ball material | Glass |
