SKU: BB-16006-B180-10-GL

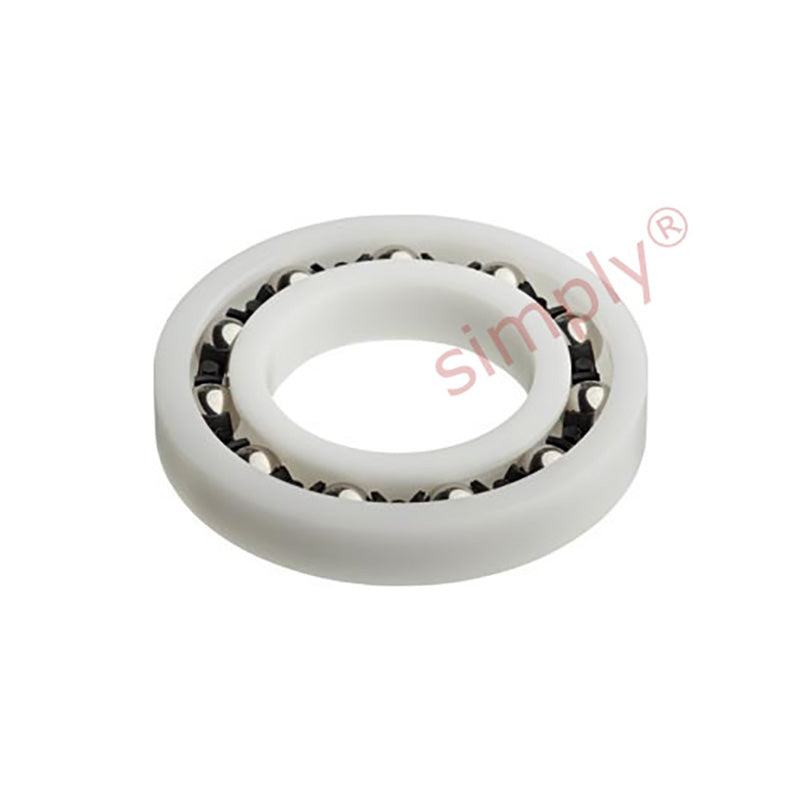

xiros xirodur BB16006B18010GL Open Type Thin Section Radial Groove Ball Bearing with PA Cage and Glass Balls 30x55x9mm - Allow 2-3 Days
xiros xirodur BB16006B18010GL Open Type Thin Section Radial Groove Ball Bearing with PA Cage and Glass Balls 30x55x9mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® B180 Thin Section Polymer Ball Bearings: These open type thin section radial deep groove ball bearings consist of polymer cages and glass balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These thin section ball bearings only require half of the space compared to the standard xiros® polymer ball bearings. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Typical applications include mechanical engineering, handling systems and light construction. Benefits: Space saving, low friction, low weight, lubrication- and maintenance-free, corrosion-resistant. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1 | 30mm |
|---|---|
| d2 | 55mm |
| b1 | 9mm |
| Max static load capacity | 640 N |
| Static load capacity | 280 N |
| Dynamic load capacity | 420 N |
| Max speed | 900 rpm |
| Race | B180 |
| Cage | PA |
| Ball material | Glass |
