SKU: ASFB207-106D1-NTN

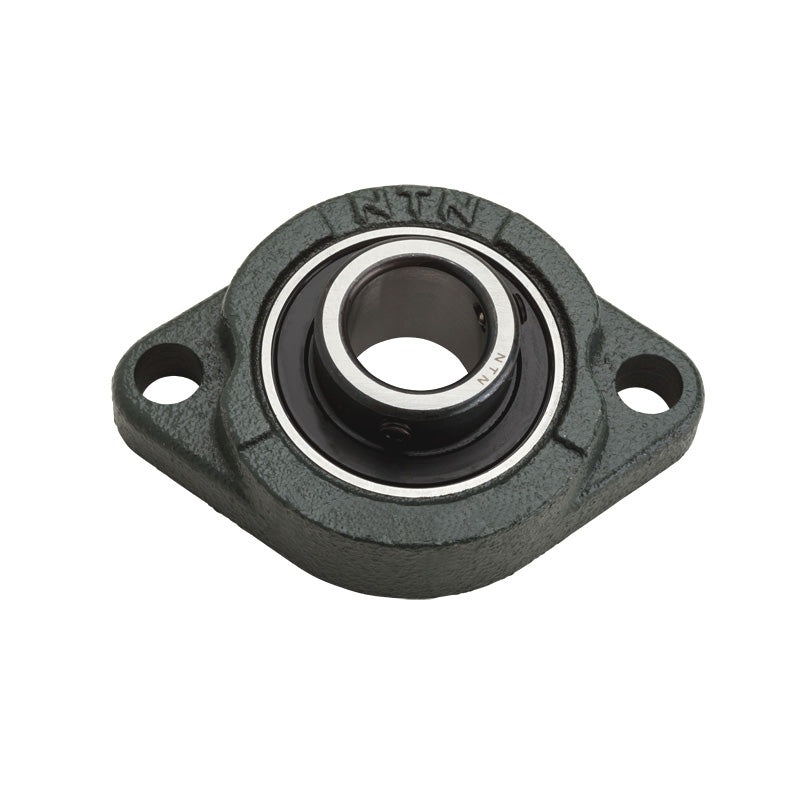

NTN ASFB207-106D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-3/8 inch Bore Insert - Allow 2-3 Days
NTN ASFB207-106D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-3/8 inch Bore Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
ASFB200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- ASFB
- Bolt Hole Centres:
- 3-15/16 inch
Technical
Technical
| Shaft diameter | 1-3/8 inch |
|---|---|
| H | 4-51/64 inch |
| J | 3-15/16 inch |
| A<sub>2</sub> | 7/16 inch |
| A<sub>1</sub> | 1/2 inch |
| A | 15/16 inch |
| N | 15/32 inch |
| L | 3-1/2 inch |
| A<sub>0</sub> | 1-7/16 inch |
| B | 1.3386 inch |
| S | 0.335 inch |
| Fixing bolt | 3/8 inch |
| Mass | 1.8 lbs |
