SKU: AELPFL206-NTN

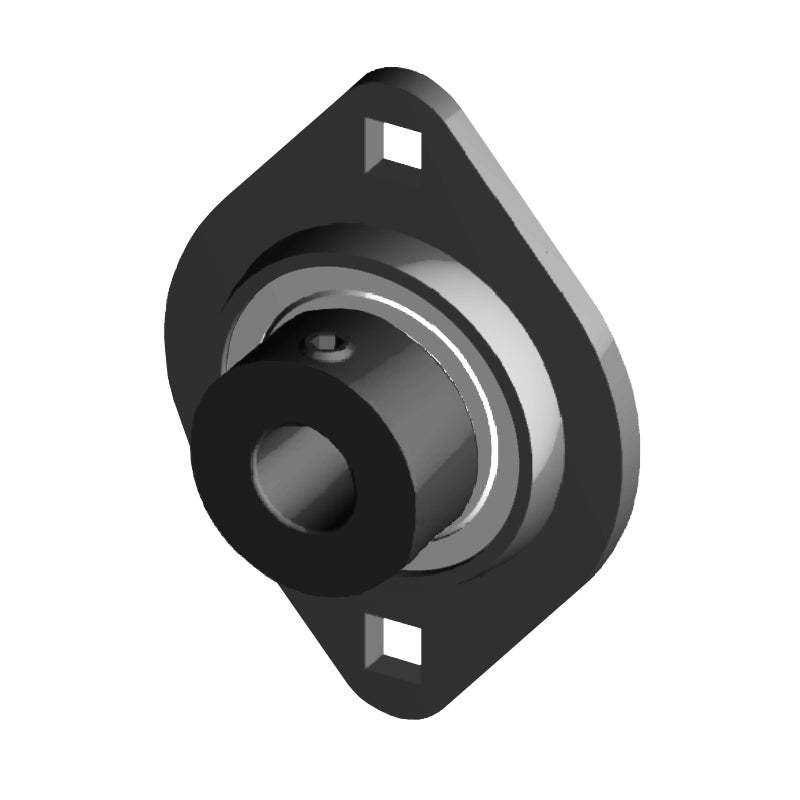

NTN AELPFL206 Metric Two Bolt Oval Pressed Steel Bearing Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days

NTN AELPFL206 Metric Two Bolt Oval Pressed Steel Bearing Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 30mm
H 113mm
J 90.5mm
A<sub>1</sub> 5.2mm
N 11mm
A 18mm
L 84mm
B<sub>1</sub> 35.7mm
S 9mm
H<sub>1</sub> 71mm
Fixing bolt M10
--- Load rating
Max load recommended radial 5000 N
Max load recommended axial 2500 N
--- Unit information
Mass 0.5 kg
