SKU: 95499D/95925/Y4S-95925-TIM

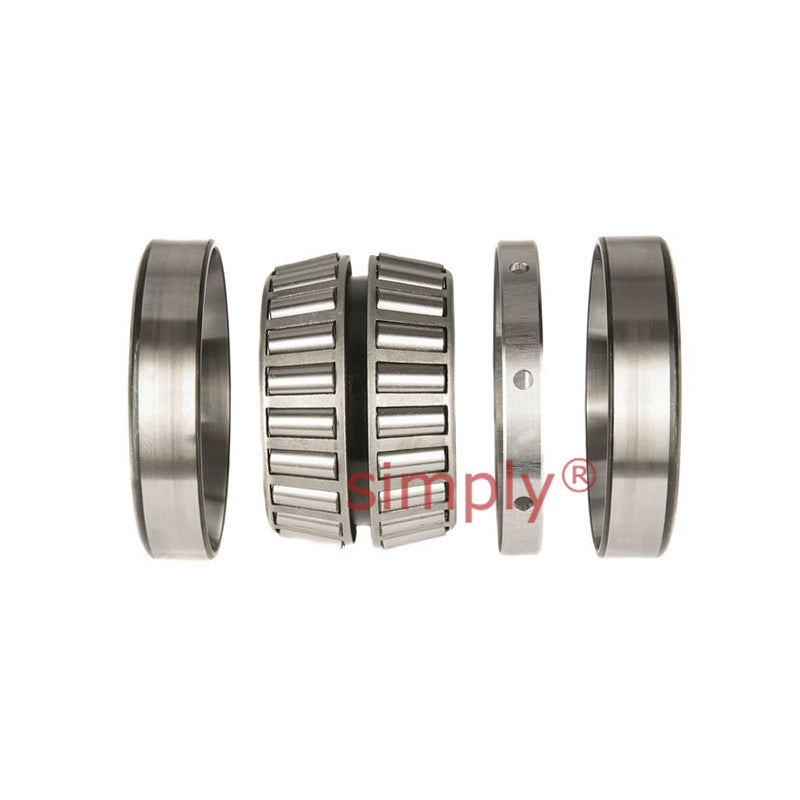

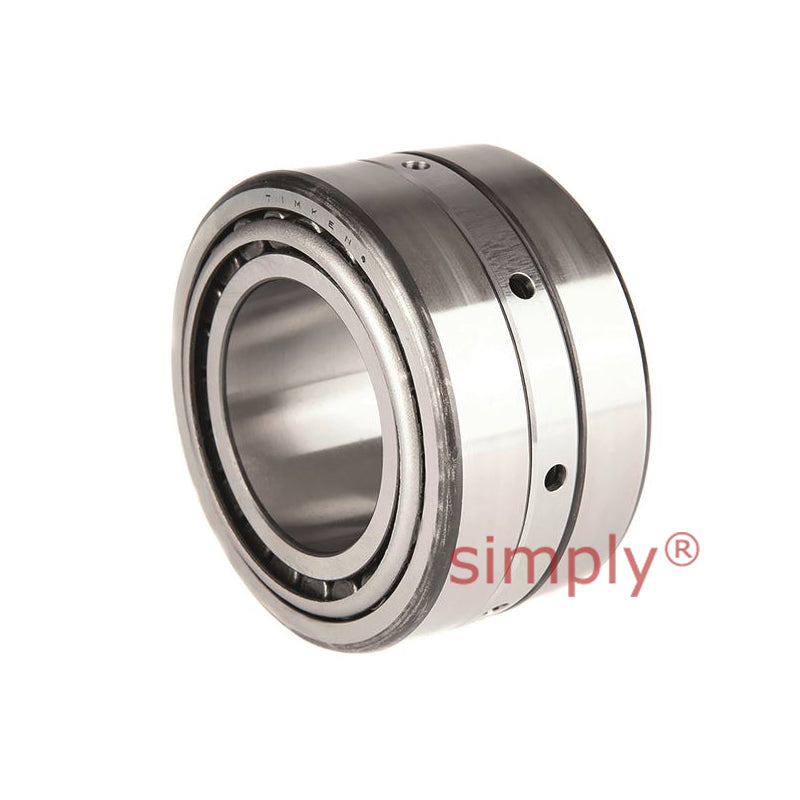

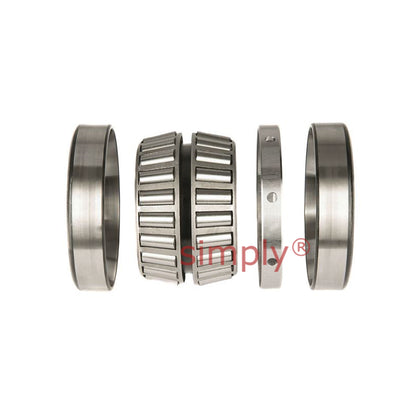

Timken 95499D/95925/Y4S-95925 TDI Double Inner Race Taper Roller Bearing 5x9.25x5.5x6 inch
Timken 95499D/95925/Y4S-95925 TDI Double Inner Race Taper Roller Bearing 5x9.25x5.5x6 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 127mm = 5 inch
- Outside Diameter:
- 234.95mm = 9.25 (9-1/4) inch
- Width:
- 139.7mm = 5.5 (5-1/2) inch
Technical
Technical
| d | 127mm = 5 inch |
|---|---|
| D | 234.95mm = 9.25 inch |
| T | 139.7mm = 5.5 inch |
| C | 152.4mm = 6 inch |
| Dynamic (1) C1 | 1010000N |
| Factors (5) e | 0.37 |
| Factors (5) Y1 | 1.83 |
| Factors (5) Y2 | 2.72 |
| Dynamic (2) C90 | 151000N |
| Dynamic (2) Ca90 | 95500N |
| Dynamic (2) C90(2) | 263000N |
| Factors (5) K | 1.58 |
| Shaft max shaft fillet radius R (3) | 5mm = 0.2 inch |
| Shaft backing shoulder diameter da | 152mm = 5.98 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 209mm = 8.23 inch |
| G1 | 454 |
| G2 | 59.3 |
| Cg | 0.1323 |
