SKU: 9386 H/9320D/X2S9385-TIM

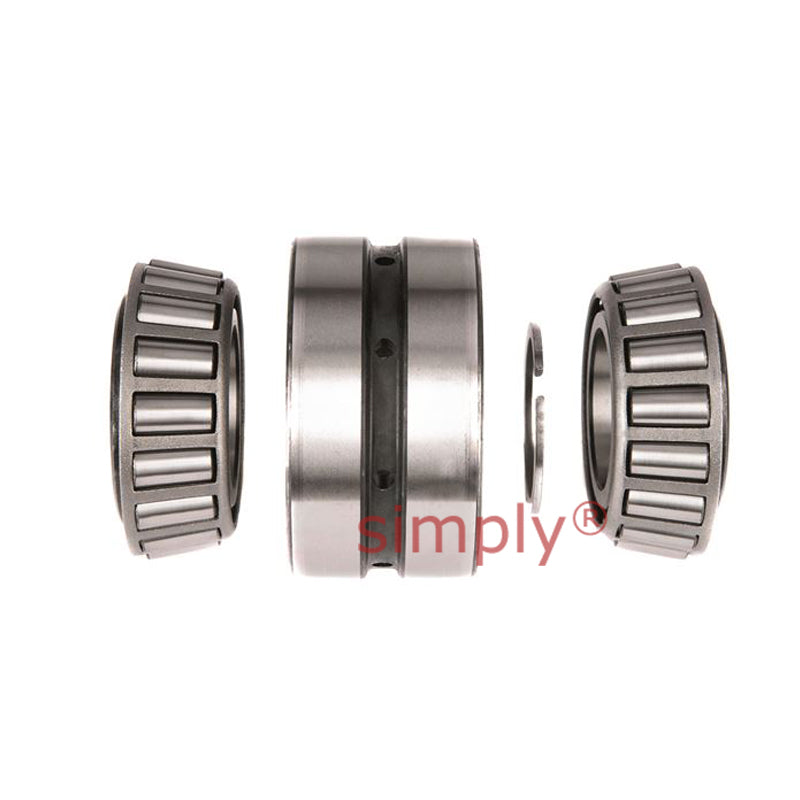

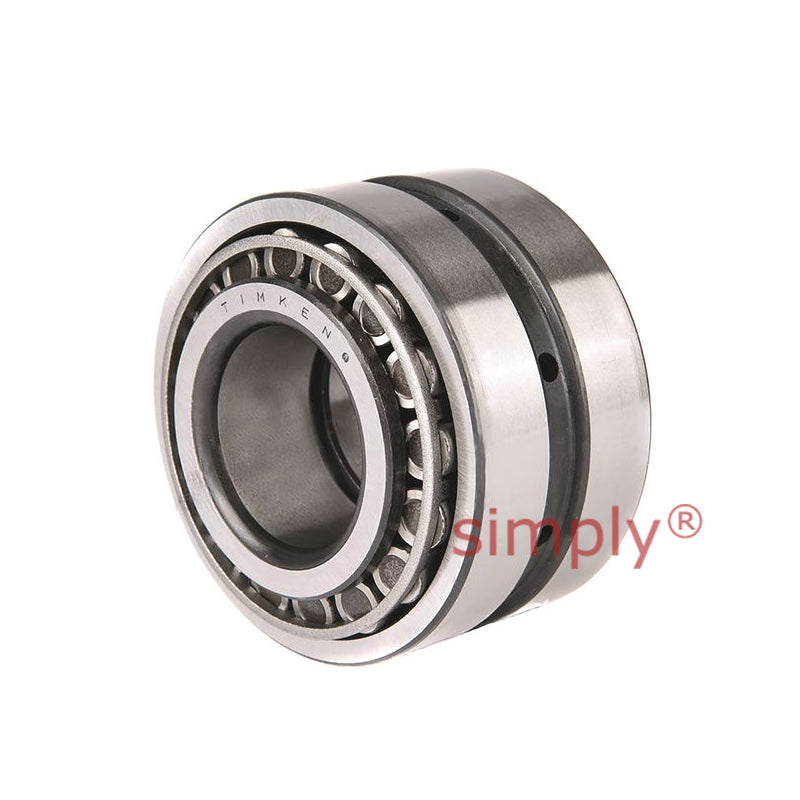

Timken 9386 H/9320D/X2S9385 TDO Double Outer Race Taper Roller Bearing 3.3125x7x4.3125x2.9375 inch
Timken 9386 H/9320D/X2S9385 TDO Double Outer Race Taper Roller Bearing 3.3125x7x4.3125x2.9375 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 84.14mm = 3.3125 inch
- Outside Diameter:
- 177.80mm = 7 inch
- Width:
- 109.54mm = 4.3125 inch
Technical
Technical
| d | 84.138mm = 3.3125 inch |
|---|---|
| D | 177.8mm = 7 inch |
| T | 109.538mm = 4.3125 inch |
| C | 74.612mm = 2.9375 inch |
| Dynamic (1) C1 | 494000N |
| Factors (5) e | 0.76 |
| Factors (5) Y1 | 0.88 |
| Factors (5) Y2 | 1.31 |
| Dynamic (2) C90 | 73500N |
| Dynamic (2) Ca90 | 96200N |
| Dynamic (2) C90(2) | 128000N |
| Factors (5) K | 0.76 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 111mm = 4.37 inch |
| Housing max shaft fillet radius r(3) | 2.3mm = 0.09 inch |
| Housing backing shoulder diameter Da | 164mm = 6.46 inch |
| G1 | 118 |
| G2 | 18.6 |
| Cg | 0.1053 |
