SKU: 891/670M.MB

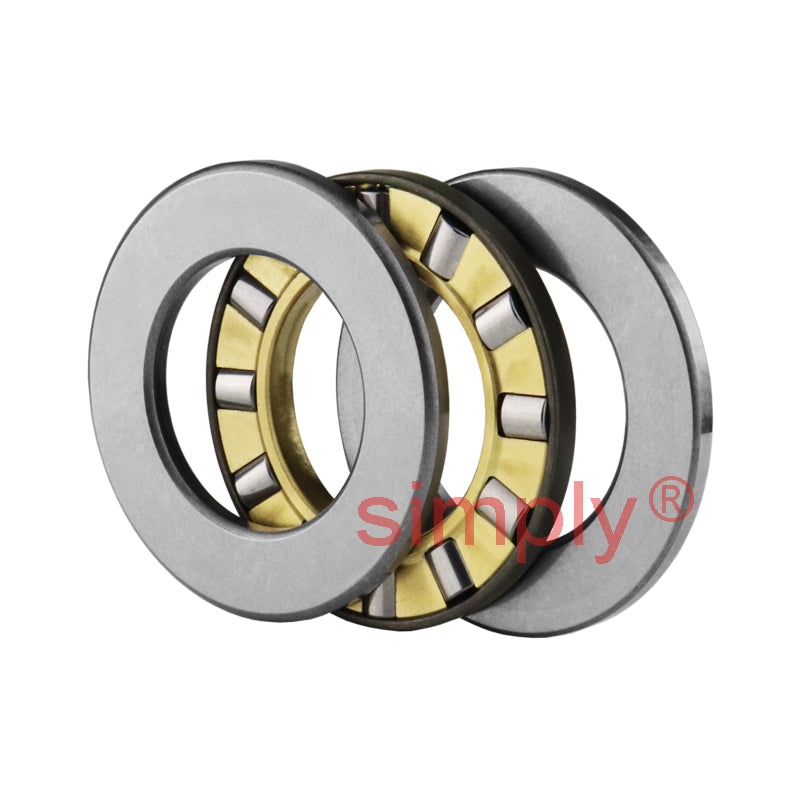

Major Brand 891/670M Cylindrical Roller Thrust Bearing with Brass Cage 670x800x78mm
Major Brand 891/670M Cylindrical Roller Thrust Bearing with Brass Cage 670x800x78mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 670mm
- Outside Diameter:
- 800mm
- Width:
- 78mm
Technical
Technical
| d | 670mm |
|---|---|
| D | 800mm |
| H | 78mm |
| Dynamic load C | 2000 kN |
| Static load Co | 13400 kN |
| Fatigue load limit Pu | 815 kN |
| Min load factor A | 14 |
| Reference speed | 220 rpm |
| Limiting speed | 450 rpm |
| Weight | 75.5 kg |
