SKU: 891/1000M.MB

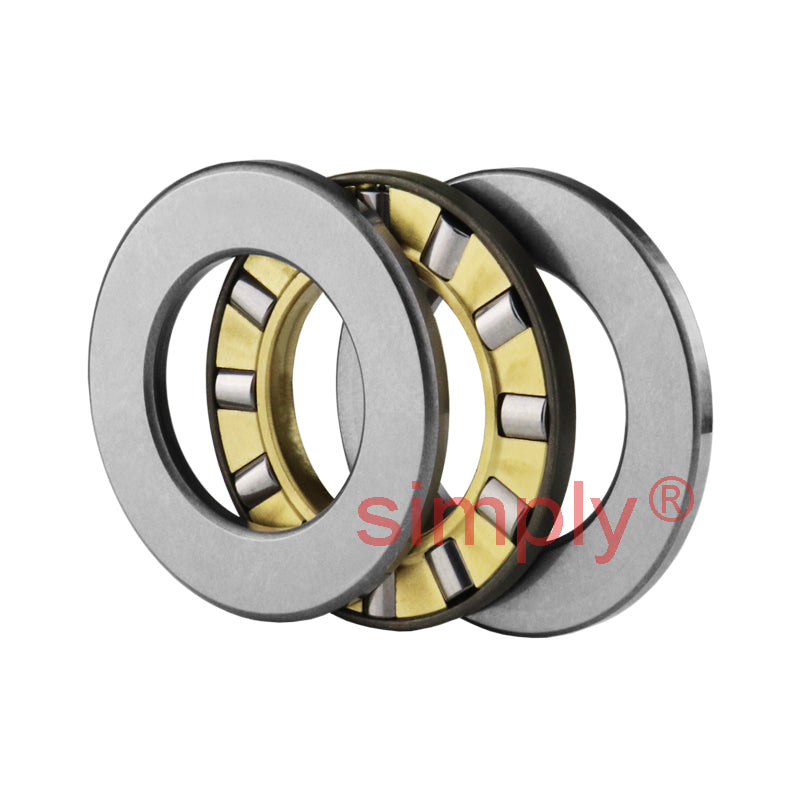

Major Brand 891/1000M Cylindrical Roller Thrust Bearing with Brass Cage 1000x1180x109mm
Major Brand 891/1000M Cylindrical Roller Thrust Bearing with Brass Cage 1000x1180x109mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 1000mm
- Outside Diameter:
- 1180mm
- Width:
- 109mm
Technical
Technical
| d | 1000mm |
|---|---|
| D | 1180mm |
| H | 109mm |
| Dynamic load C | 3900 kN |
| Static load Co | 28500 kN |
| Fatigue load limit Pu | 1560 kN |
| Min load factor A | 65 |
| Reference speed | 150 rpm |
| Limiting speed | 280 rpm |
| Weight | 220 kg |
