SKU: 87750/87111-SKF

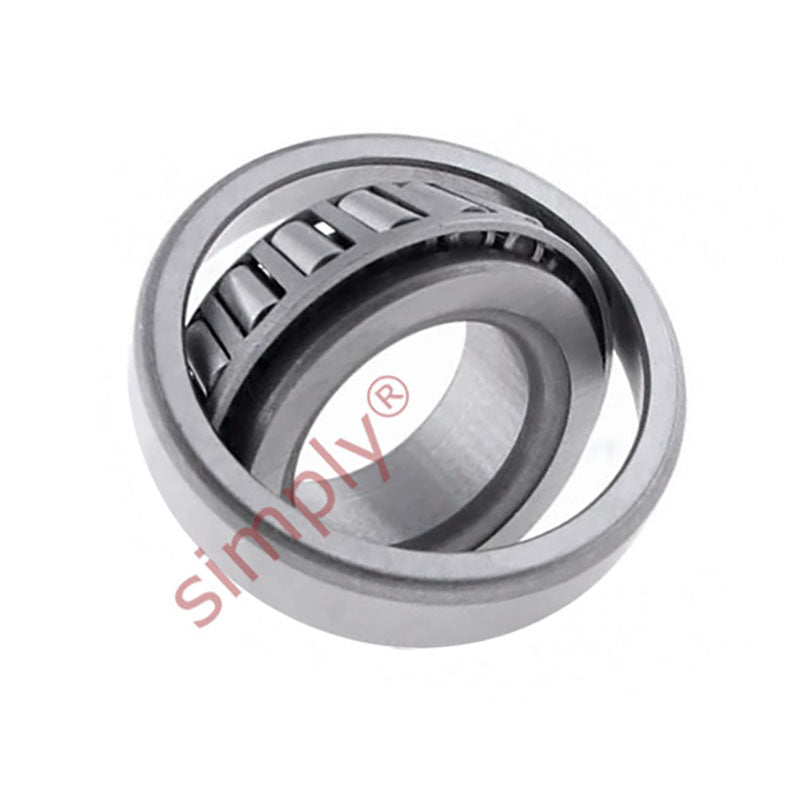

SKF 87750/87111 Imperial Taper Roller Bearing 7.5x11.125x2 inches

Name: SKF 87750/87111 Imperial Taper Roller Bearing 7.5x11.125x2 inches
Brand: SKF
SKU: 87750/87111-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 190.5mm = 7.5 (7-1/2) inch
Outside Diameter:: 282.58mm = 11.125 (11-1/8) inch
Width:: 50.8mm = 2 inch
Seals / Shields:: None

Technical

d	190.5mm
D	282.575mm
T	50.8mm
Dynamic load	402 kN
Static load	695 kN
Fatigue load limit Pu	67 kN
Reference speed	1600 rpm
Limiting speed	2200 rpm
Weight	9.6 kg
d1	233mm
B	47.625mm
C	36.512mm
r1r2 min	3.5mm
r3r4 min	3.3mm
a	55mm
da max	213mm
db min	205mm
Da min	253mm
Da max	268mm
Db min	267mm
Ca min	6mm
Cb min	14mm
ra max	3mm
rb max	3mm
Calculation factor e	0.43
Calculation factor Y	1.4
Calculation factor Y0	0.8
