SKU: 812/630M.MB

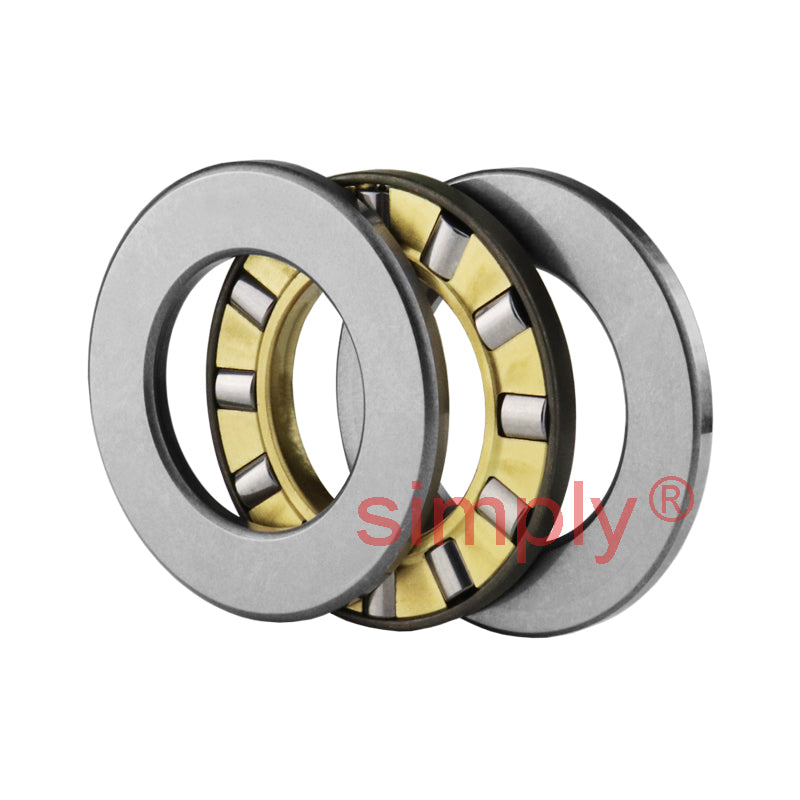

Major Brand 812/630M Cylindrical Roller Thrust Bearing with Brass Cage 630x850x175mm
Major Brand 812/630M Cylindrical Roller Thrust Bearing with Brass Cage 630x850x175mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 630mm
- Outside Diameter:
- 850mm
- Width:
- 175mm
Technical
Technical
| d | 630mm |
|---|---|
| D | 850mm |
| H | 175mm |
| Dynamic load C | 4800 kN |
| Static load Co | 26000 kN |
| Fatigue load limit Pu | 1560 kN |
| Min load factor A | 54 |
| Reference speed | 140 rpm |
| Limiting speed | 280 rpm |
| Weight | 295 kg |
