SKU: 812/530M.MB

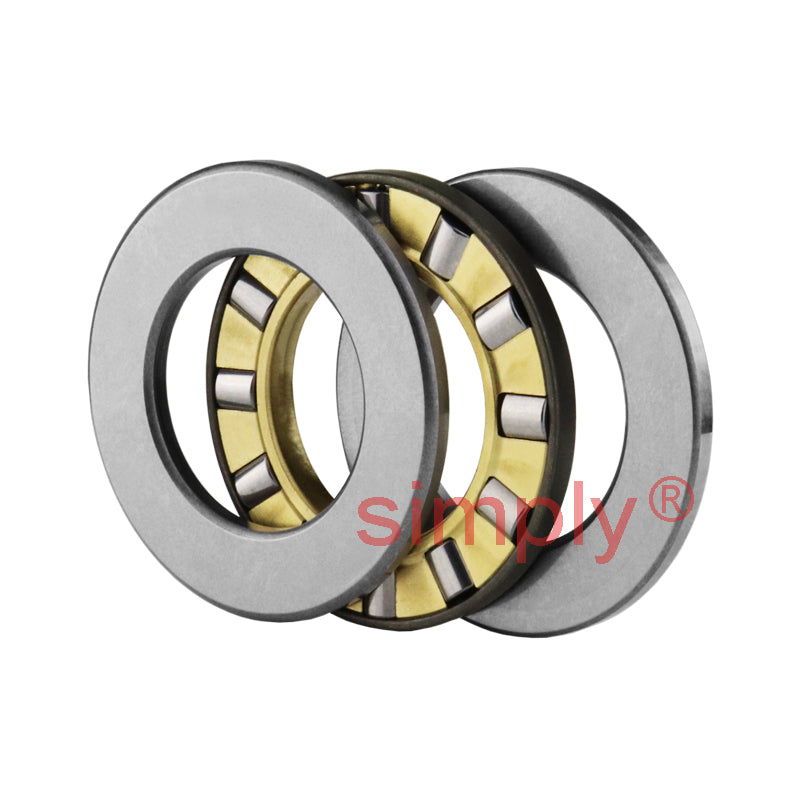

Major Brand 812/530M Cylindrical Roller Thrust Bearing with Brass Cage 530x710x140mm
Major Brand 812/530M Cylindrical Roller Thrust Bearing with Brass Cage 530x710x140mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 530mm
- Outside Diameter:
- 710mm
- Width:
- 140mm
Technical
Technical
| d | 530mm |
|---|---|
| D | 710mm |
| H | 140mm |
| Dynamic load C | 3650 kN |
| Static load Co | 18600 kN |
| Fatigue load limit Pu | 1180 kN |
| Min load factor A | 28 |
| Reference speed | 180 rpm |
| Limiting speed | 360 rpm |
| Weight | 154 kg |
