SKU: 811/500M.MB

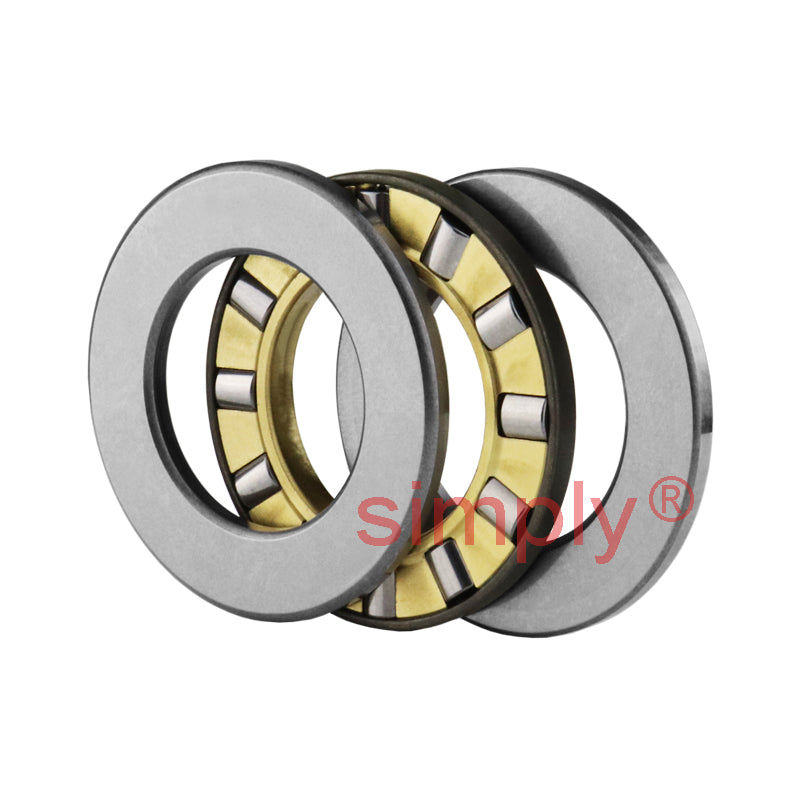

Major Brand 811/500M Cylindrical Roller Thrust Bearing with Brass Cage 500x600x80mm
Major Brand 811/500M Cylindrical Roller Thrust Bearing with Brass Cage 500x600x80mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 500mm
- Outside Diameter:
- 600mm
- Width:
- 80mm
Technical
Technical
| d | 500mm |
|---|---|
| D | 600mm |
| H | 80mm |
| Dynamic load C | 1560 kN |
| Static load Co | 9300 kN |
| Fatigue load limit Pu | 620 kN |
| Min load factor A | 6.9 |
| Reference speed | 280 rpm |
| Limiting speed | 560 rpm |
| Cage reference | K811/500M |
| Weight | 44 kg |
