SKU: 811/1120M.MB

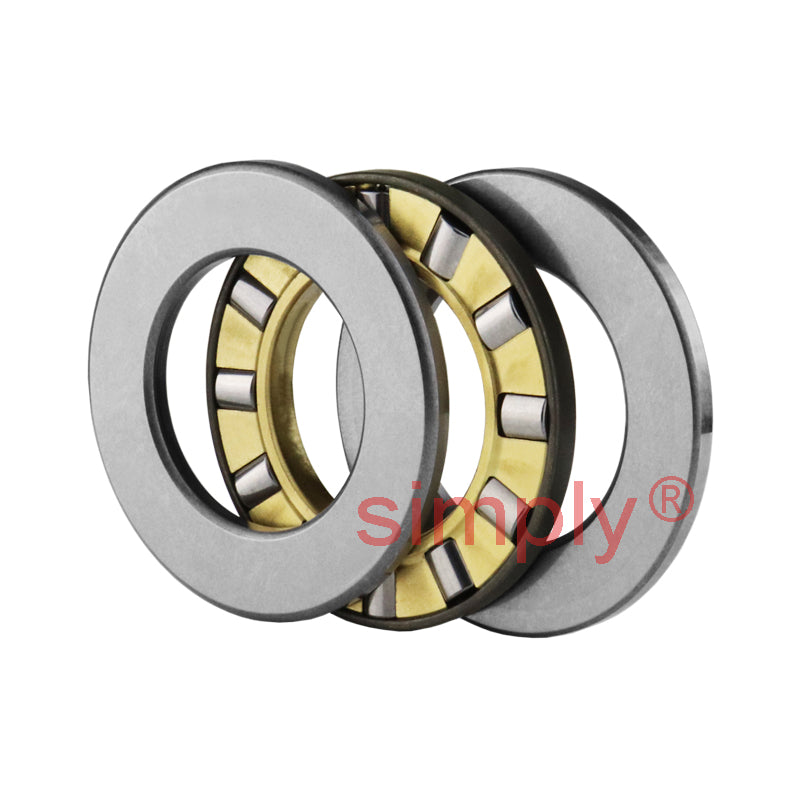

Major Brand 811/1120M Cylindrical Roller Thrust Bearing with Brass Cage 1120x1320x160mm
Major Brand 811/1120M Cylindrical Roller Thrust Bearing with Brass Cage 1120x1320x160mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 1120mm
- Outside Diameter:
- 1320mm
- Width:
- 160mm
Technical
Technical
| d | 1120mm |
|---|---|
| D | 1320mm |
| H | 160mm |
| Dynamic load C | 6000 kN |
| Static load Co | 41500 kN |
| Fatigue load limit Pu | 2160 kN |
| Min load factor A | 140 |
| Reference speed | 110 rpm |
| Limiting speed | 220 rpm |
| Weight | 410 kg |
