SKU: 719USSC130-UKF

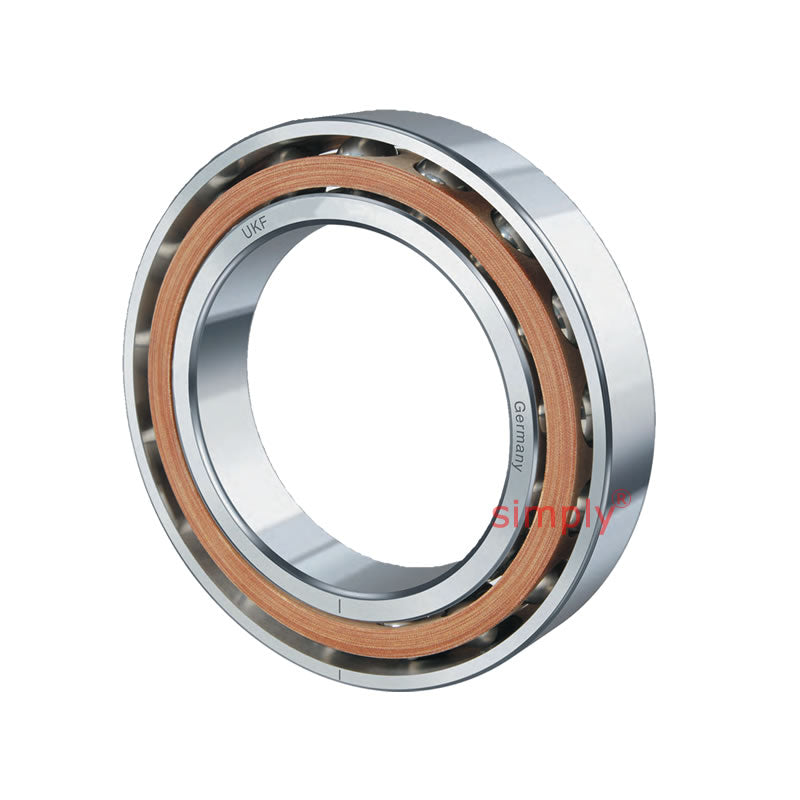

UKF 719USSC130 Super Precision Single Row Angular Contact Spindle Bearing 130x180x24mm
UKF 719USSC130 Super Precision Single Row Angular Contact Spindle Bearing 130x180x24mm
Equivalent to: 719USSC130
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 180mm
- Width:
- 24mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 130mm |
|---|---|
| D | 180mm |
| B | 24mm |
| Dynamic load Co | 51920 N |
| Static load C | 58240 N |
| Speed in Grease | 8400 rpm |
| Speed in Oil | 13100 rpm |
| r<sub>a</sub> | 0.6mm |
| d<sub>a</sub> | 139mm |
| D<sub>a</sub> | 171mm |
| Axial Preload F<sub>v</sub> L | 670 N |
| Axial Preload F<sub>v</sub> M | 2020 N |
| Axial Preload F<sub>v</sub> S | 4040 N |
| Axial Rigidity R<sub>a</sub> L | 253 N/μm |
| Axial Rigidity R<sub>a</sub> M | 362 N/μm |
| Axial Rigidity R<sub>a</sub> S | 454 N/μm |
| Radial Rigidity R<sub>r</sub> L | 1012 N/μm |
| Radial Rigidity R <sub>r</sub> M | 1461 N/μm |
| Radial Rigidity <sub>r</sub> S | 1840 N/μm |
| Weight | 1.32 kg |
