SKU: 70USSC150-UKF

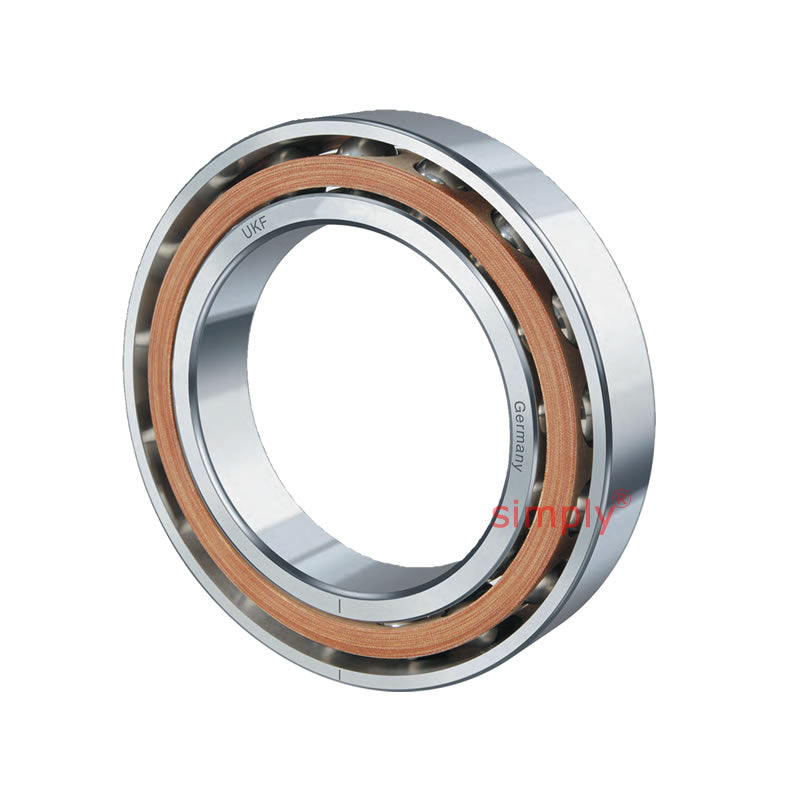

UKF 70USSC150 Super Precision Single Row Angular Contact Spindle Bearing 150x225x35mm
UKF 70USSC150 Super Precision Single Row Angular Contact Spindle Bearing 150x225x35mm
Equivalent to: 70USSC150
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 225mm
- Width:
- 35mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 150mm |
|---|---|
| D | 225mm |
| B | 35mm |
| Dynamic load Co | 97900 N |
| Static load C | 122500 N |
| Speed in Grease | 6700 rpm |
| Speed in Oil | 10500 rpm |
| r<sub>a</sub> | 1.5mm |
| d<sub>a</sub> | 165.5mm |
| D<sub>a</sub> | 209.5mm |
| Axial Preload F<sub>v</sub> L | 1100 N |
| Axial Preload F<sub>v</sub> M | 3240 N |
| Axial Preload F<sub>v</sub> S | 6440 N |
| Axial Rigidity R<sub>a</sub> L | 299 N/μm |
| Axial Rigidity R<sub>a</sub> M | 426 N/μm |
| Axial Rigidity R<sub>a</sub> S | 535 N/μm |
| Radial Rigidity R<sub>r</sub> L | 1196 N/μm |
| Radial Rigidity R <sub>r</sub> M | 1714 N/μm |
| Radial Rigidity <sub>r</sub> S | 2162 N/μm |
| Weight | 3.61 kg |
