SKU: 70USSC15-UKF

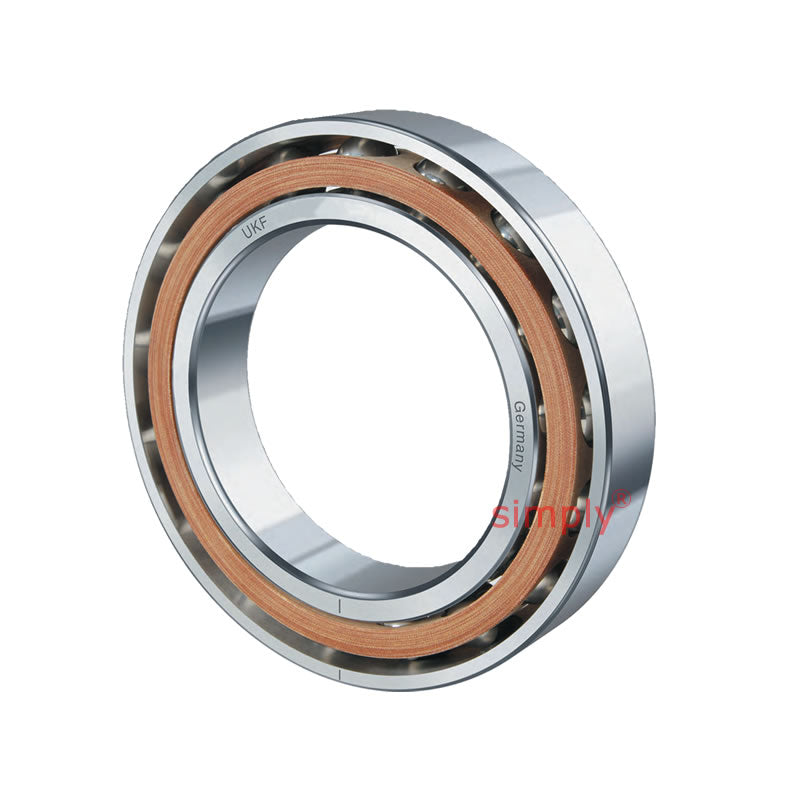

UKF 70USSC15 Super Precision Single Row Angular Contact Spindle Bearing 15x32x9mm
UKF 70USSC15 Super Precision Single Row Angular Contact Spindle Bearing 15x32x9mm
Equivalent to: 70USSC15
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 9mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 9mm |
| Dynamic load Co | 1980 N |
| Static load C | 4480 N |
| Speed in Grease | 55300 rpm |
| Speed in Oil | 85400 rpm |
| r<sub>a</sub> | 0.3mm |
| d<sub>a</sub> | 18.5mm |
| D<sub>a</sub> | 28.5mm |
| Axial Preload F<sub>v</sub> L | 40 N |
| Axial Preload F<sub>v</sub> M | 130 N |
| Axial Preload F<sub>v</sub> S | 260 N |
| Axial Rigidity R<sub>a</sub> L | 37 N/μm |
| Axial Rigidity R<sub>a</sub> M | 55 N/μm |
| Axial Rigidity R<sub>a</sub> S | 69 N/μm |
| Radial Rigidity R<sub>r</sub> L | 150 N/μm |
| Radial Rigidity R <sub>r</sub> M | 219 N/μm |
| Radial Rigidity <sub>r</sub> S | 276 N/μm |
| Weight | 0.03 kg |
