SKU: 70USOC70-UKF

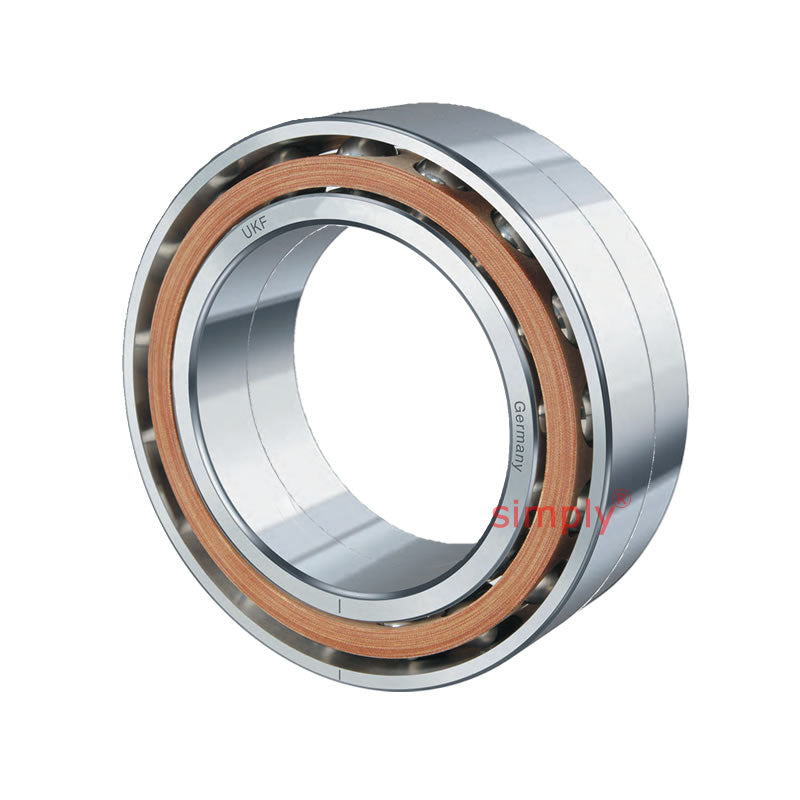

UKF 70USOC70 Super Precision Double Row Angular Contact Spindle Bearing 70x110x40mm
UKF 70USOC70 Super Precision Double Row Angular Contact Spindle Bearing 70x110x40mm
Equivalent to: 70USOC70
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 110mm
- Width:
- 40mm
- Seals / Shields:
- None
- Style:
- Double Row Angular Contact Spindle Bearings
Technical
Technical
| d | 70mm |
|---|---|
| D | 110mm |
| B | 40mm |
| Dynamic load Co | 41910 N |
| Static load C | 54180 N |
| Speed in Grease | 13300 rpm |
| Speed in Oil | 21000 rpm |
| r<sub>a</sub> | 1mm |
| d<sub>a</sub> | 78mm |
| D<sub>a</sub> | 102mm |
| Axial Preload F<sub>v</sub> L | 330 N |
| Axial Preload F<sub>v</sub> M | 1000 N |
| Axial Preload F<sub>v</sub> S | 1940 N |
| Axial Rigidity R<sub>a</sub> L | 150 N/μm |
| Axial Rigidity R<sub>a</sub> M | 213 N/μm |
| Axial Rigidity R<sub>a</sub> S | 270 N/μm |
| Radial Rigidity R<sub>r</sub> L | 598 N/μm |
| Radial Rigidity R <sub>r</sub> M | 863 N/μm |
| Radial Rigidity <sub>r</sub> S | 1081 N/μm |
| Weight | 1.02 kg |
