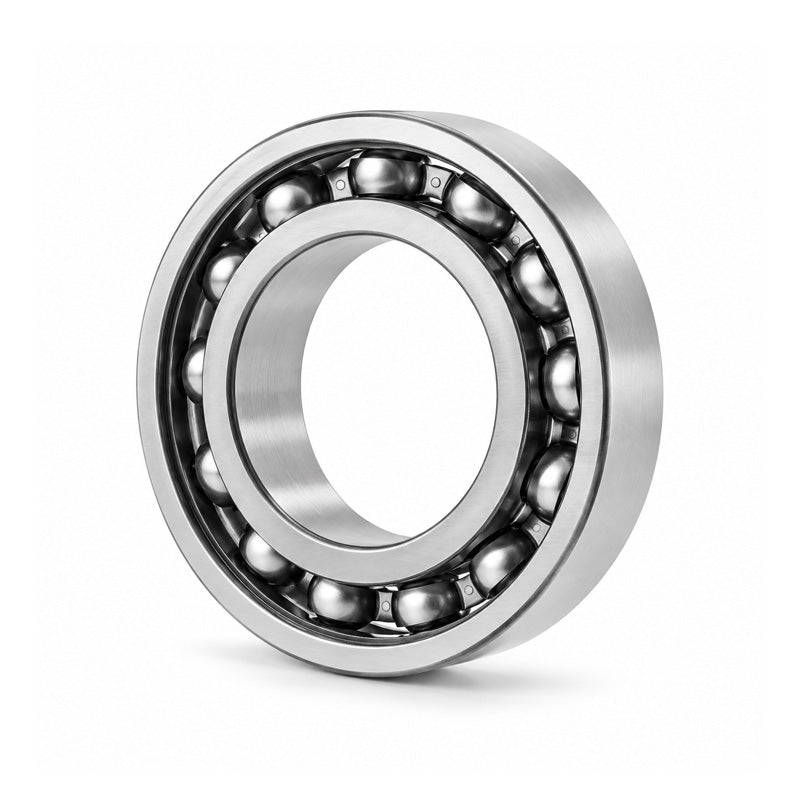

NACHI 6924C3 Thin Section Open Deep Groove Ball Bearing 120x165x22mm
NACHI 6924C3 Thin Section Open Deep Groove Ball Bearing 120x165x22mm
Equivalent to: 61924C3
Out of stock
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 165mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 120mm |
|---|---|
| Outside Diameter D | 165mm |
| Width B | 22mm |
| Min radius r | 1.1mm |
| Dynamic load | 53000 kN |
| Static load | 54000 kN |
| Max speed in oil | 4600 rpm |
| Max speed in grease | 3800 rpm |
| da min | 126mm |
| Da max | 159mm |
| ra max | 1mm |
| Weight | 1.13 kg |
