SKU: 6919-SKF

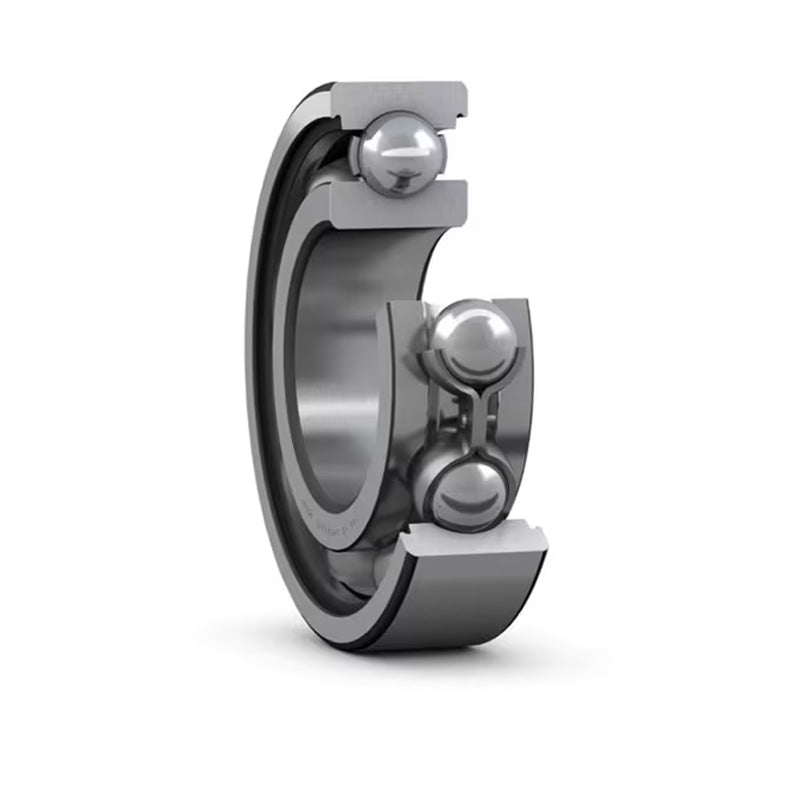

SKF 6919 Open Type Thin Section Deep Groove Ball Bearing 95x130x18mm
SKF 6919 Open Type Thin Section Deep Groove Ball Bearing 95x130x18mm
Equivalent to: 9319K 61919 61919S AY95
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 130mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 95mm |
|---|---|
| D | 130mm |
| B | 18mm |
| Dynamic load | 33.8 kN |
| Static load | 33.5 kN |
| Fatigue load limit Pu | 1.43 kN |
| Reference speed | 10000 rpm |
| Limiting speed | 6300 rpm |
| Weight | 0.61 kg |
| d1 | 106mm |
| D1 | 119mm |
| D2 | 122mm |
| r1r2 min | 1.1mm |
| da min | 101mm |
| Da max | 124mm |
| ra max | 1mm |
| Calculation factor kr | 0.02 |
| Calculation factor Cor | 17 |
