SKU: 6917-ZZ/C3-NACHI

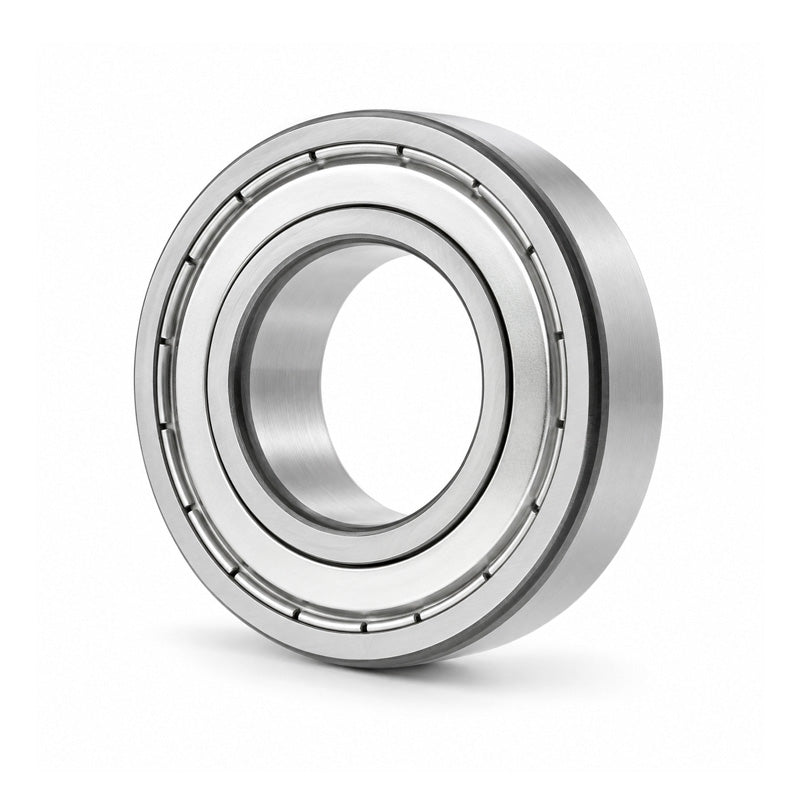

NACHI 6917ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 85x120x18mm
NACHI 6917ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 85x120x18mm
Equivalent to: 6917ZZEC3 69172ZC3 6917.2ZC3 6917KDDC3 6917DDC3 69172ZRC3 6917FFC3 61917ZZEC3 61917ZZC3 619172ZC3 61917.2ZC3 61917KDDC3 61917DDC3 619172ZRC3 61917FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 120mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 85mm |
|---|---|
| Outside Diameter D | 120mm |
| Width B | 18mm |
| Min radius r | 1.1mm |
| Dynamic load | 32000 kN |
| Static load | 29600 kN |
| Max speed | 5400 rpm |
| da min | 91mm |
| Da max | 113mm |
| ra max | 1mm |
| Weight | 0.517 kg |
