SKU: 6916-ZZ/C3-NACHI

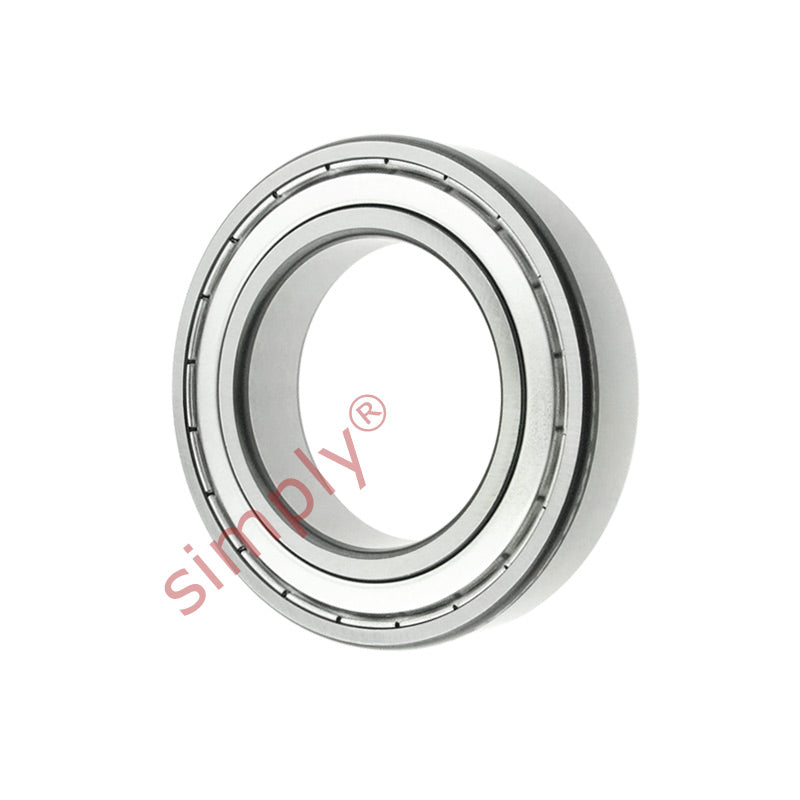

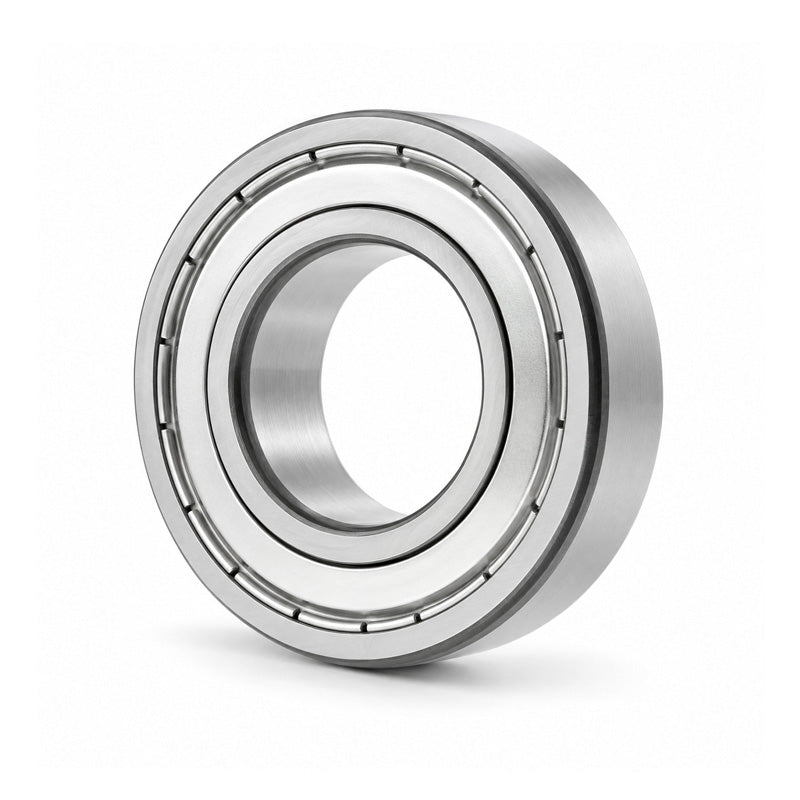

NACHI 6916ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 80x110x16mm
NACHI 6916ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 80x110x16mm
Equivalent to: 6916ZZEC3 69162ZC3 6916.2ZC3 6916KDDC3 6916DDC3 69162ZRC3 6916FFC3 61916ZZEC3 61916ZZC3 619162ZC3 61916.2ZC3 61916KDDC3 61916DDC3 619162ZRC3 61916FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 110mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 80mm |
|---|---|
| Outside Diameter D | 110mm |
| Width B | 16mm |
| Min radius r | 1mm |
| Dynamic load | 27600 kN |
| Static load | 25300 kN |
| Max speed | 5700 rpm |
| da min | 85mm |
| Da max | 105mm |
| ra max | 1mm |
| Weight | 0.363 kg |
