SKU: 6915-ZZ-NACHI

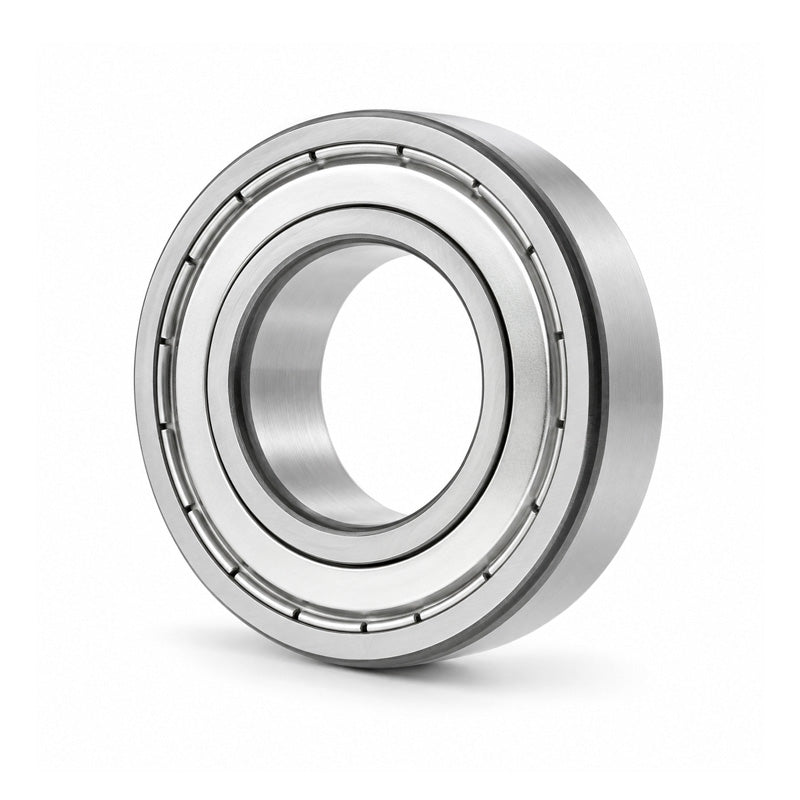

NACHI 6915ZZ Thin Section Metal Shielded Deep Groove Ball Bearing 75x105x16mm
NACHI 6915ZZ Thin Section Metal Shielded Deep Groove Ball Bearing 75x105x16mm
Equivalent to: 6915ZZE 69152Z 6915.2Z 6915KDD 6915DD 69152ZR 6915FF 61915ZZE 61915ZZ 619152Z 61915.2Z 61915KDD 61915DD 619152ZR 61915FF
Out of stock
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 105mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 75mm |
|---|---|
| Outside Diameter D | 105mm |
| Width B | 16mm |
| Min radius r | 1mm |
| Dynamic load | 20800 kN |
| Static load | 19700 kN |
| Max speed | 6200 rpm |
| da min | 80mm |
| Da max | 100mm |
| ra max | 1mm |
| Weight | 0.345 kg |
