SKU: 6915-ZZ/C3-NACHI

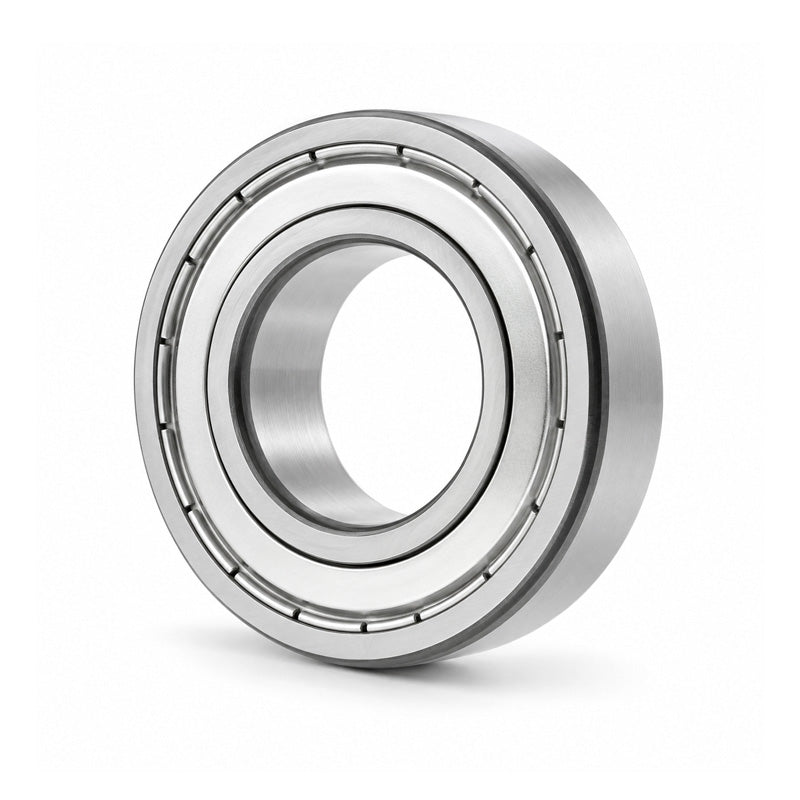

NACHI 6915ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 75x105x16mm
NACHI 6915ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 75x105x16mm
Equivalent to: 6915ZZEC3 69152ZC3 6915.2ZC3 6915KDDC3 6915DDC3 69152ZRC3 6915FFC3 61915ZZEC3 61915ZZC3 619152ZC3 61915.2ZC3 61915KDDC3 61915DDC3 619152ZRC3 61915FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 105mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 75mm |
|---|---|
| Outside Diameter D | 105mm |
| Width B | 16mm |
| Min radius r | 1mm |
| Dynamic load | 20800 kN |
| Static load | 19700 kN |
| Max speed | 6200 rpm |
| da min | 80mm |
| Da max | 100mm |
| ra max | 1mm |
| Weight | 0.345 kg |
