SKU: 6909-2NKE-NACHI

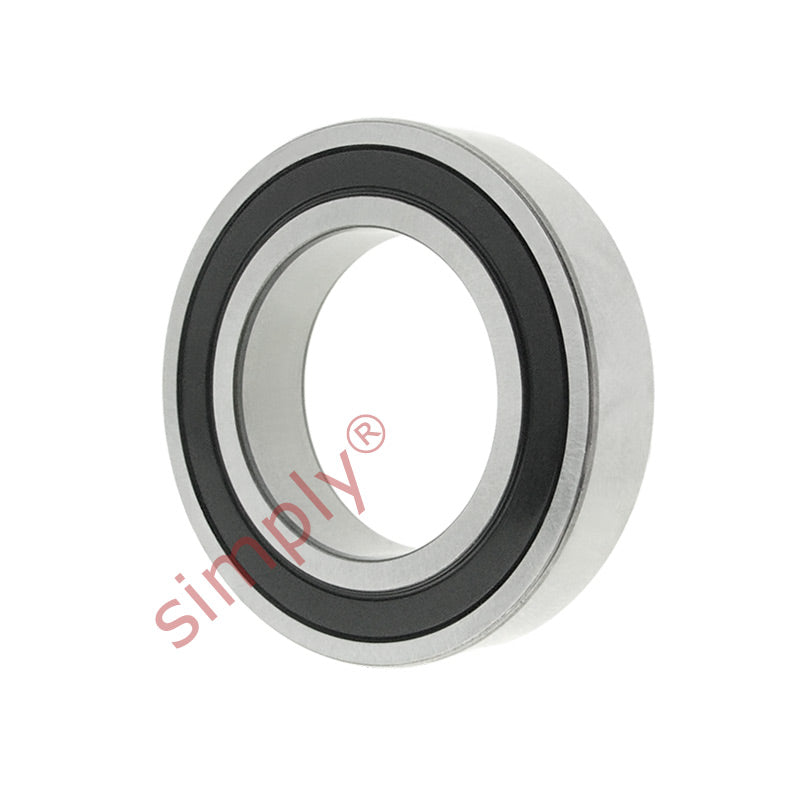

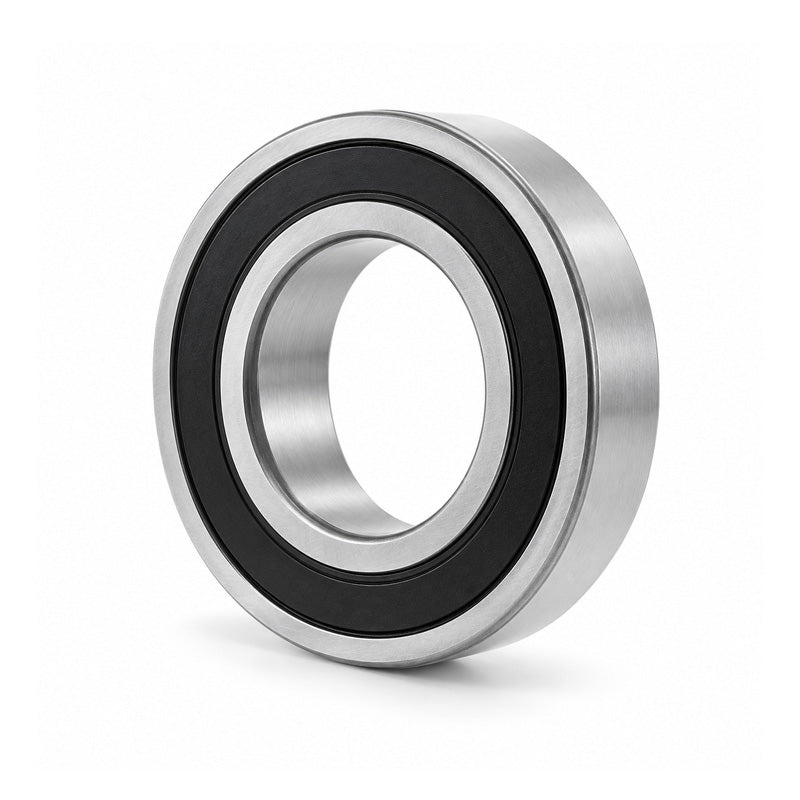

NACHI 69092NKE Thin Section Non Contact Low Friction Sealed Deep Groove Ball Bearing 45x68x12mm
NACHI 69092NKE Thin Section Non Contact Low Friction Sealed Deep Groove Ball Bearing 45x68x12mm
Equivalent to: 6909NKE 619092NKE 61909NKE
Out of stock
Description
Description
|
NACHI Non-contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two non-contact rubber seals to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation, good grease sealing, good protection against dust, low friction. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 68mm
- Width:
- 12mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 68mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 14100 kN |
| Static load | 10900 kN |
| Max speed | 10000 rpm |
| da min | 49mm |
| Da max | 64mm |
| ra max | 0.6mm |
| Weight | 0.122 kg |
