SKU: 6908-2NSE/C3-NACHI

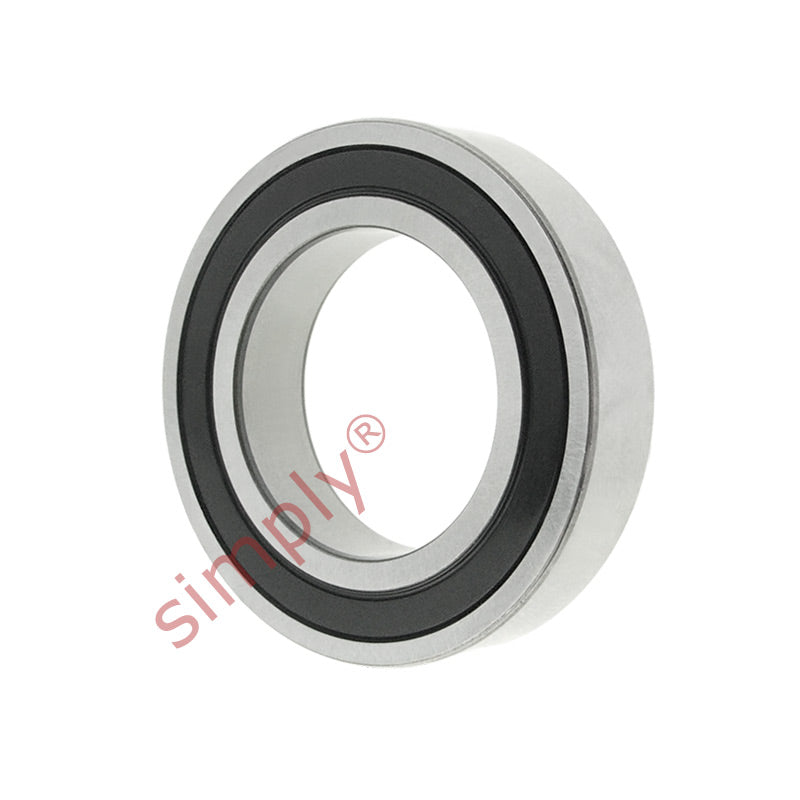

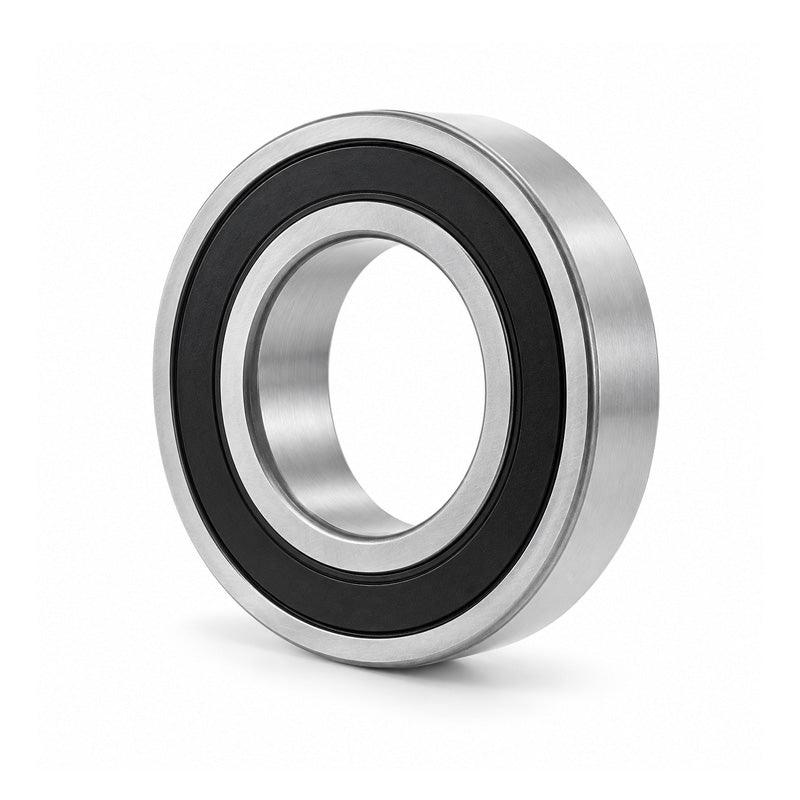

NACHI 69082NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 40x62x12mm
NACHI 69082NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 40x62x12mm
Equivalent to: 6908NSEC3 6908DUC3 6908RSC3 6908RSHC3 6908PC3 6908RSRC3 6908LUC3 61908NSEC3 61908DUC3 61908RSC3 61908RSHC3 61908PC3 61908RSRC3 61908LUC3 6908DDUC3 69082RSC3 69082RS1C3 69082RSHC3 6908PPC3 69082RSRC3 6908LLUC3 619082NSEC3 61908DDUC3 619082RSC3 619082RS1C3 619082RSHC3 61908PPC3 619082RSRC3 61908LLUC3
Out of stock
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 40mm |
|---|---|
| Outside Diameter D | 62mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 13700 kN |
| Static load | 9950 kN |
| Max speed | 11000 rpm |
| da min | 44mm |
| Da max | 58mm |
| ra max | 0.6mm |
| Weight | 0.108 kg |
