SKU: 6907-2NKE-NACHI

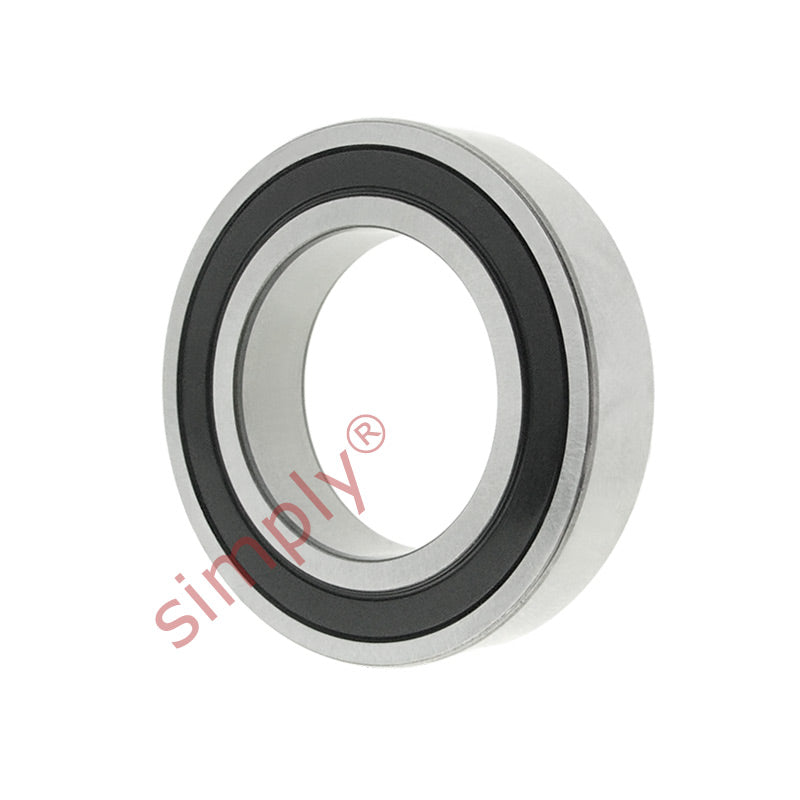

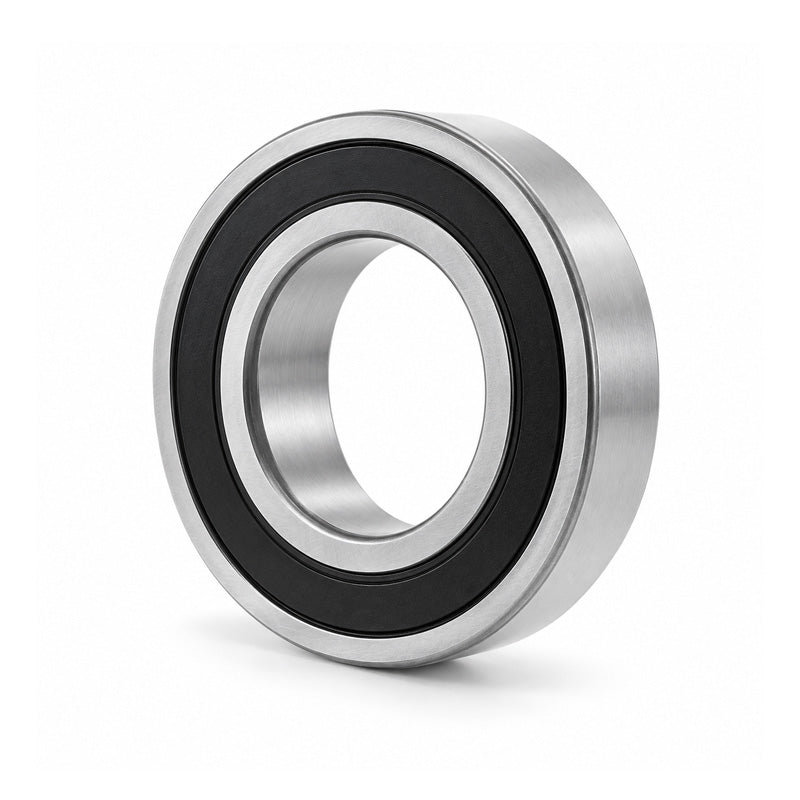

NACHI 69072NKE Thin Section Non Contact Low Friction Sealed Deep Groove Ball Bearing 35x55x10mm
NACHI 69072NKE Thin Section Non Contact Low Friction Sealed Deep Groove Ball Bearing 35x55x10mm
Equivalent to: 6907NKE 619072NKE 61907NKE
Out of stock
Description
Description
|
NACHI Non-contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two non-contact rubber seals to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation, good grease sealing, good protection against dust, low friction. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 10mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 35mm |
|---|---|
| Outside Diameter D | 55mm |
| Width B | 10mm |
| Min radius r | 0.6mm |
| Dynamic load | 10400 kN |
| Static load | 7150 kN |
| Max speed | 12000 rpm |
| da min | 39mm |
| Da max | 51mm |
| ra max | 0.6mm |
| Weight | 0.073 kg |
