SKU: 6902-2NSE/C3-NACHI

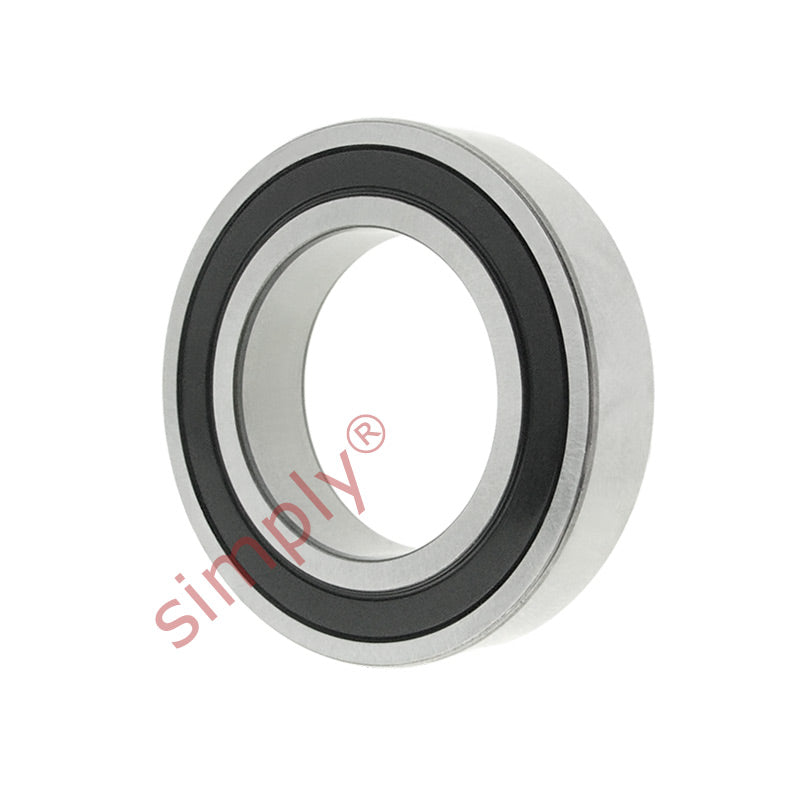

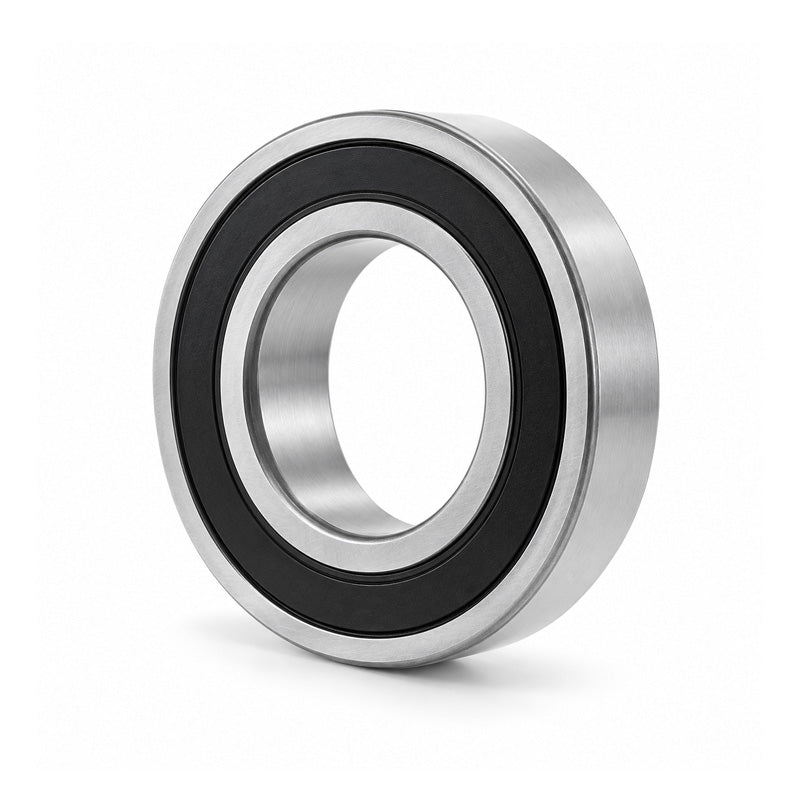

NACHI 69022NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 15x28x7mm
NACHI 69022NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 15x28x7mm
Equivalent to: 6902NSEC3 6902DUC3 6902RSC3 6902RSHC3 6902PC3 6902RSRC3 6902LUC3 61902NSEC3 61902DUC3 61902RSC3 61902RSHC3 61902PC3 61902RSRC3 61902LUC3 6902DDUC3 69022RSC3 69022RS1C3 69022RSHC3 6902PPC3 69022RSRC3 6902LLUC3 619022NSEC3 61902DDUC3 619022RSC3 619022RS1C3 619022RSHC3 61902PPC3 619022RSRC3 61902LLUC3
Out of stock
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 15mm |
|---|---|
| Outside Diameter D | 28mm |
| Width B | 7mm |
| Min radius r | 0.3mm |
| Dynamic load | 4300 kN |
| Static load | 2250 kN |
| Max speed | 26000 rpm |
| da min | 17mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Weight | 0.016 kg |
