SKU: 6900-2RSR-C3-FAG

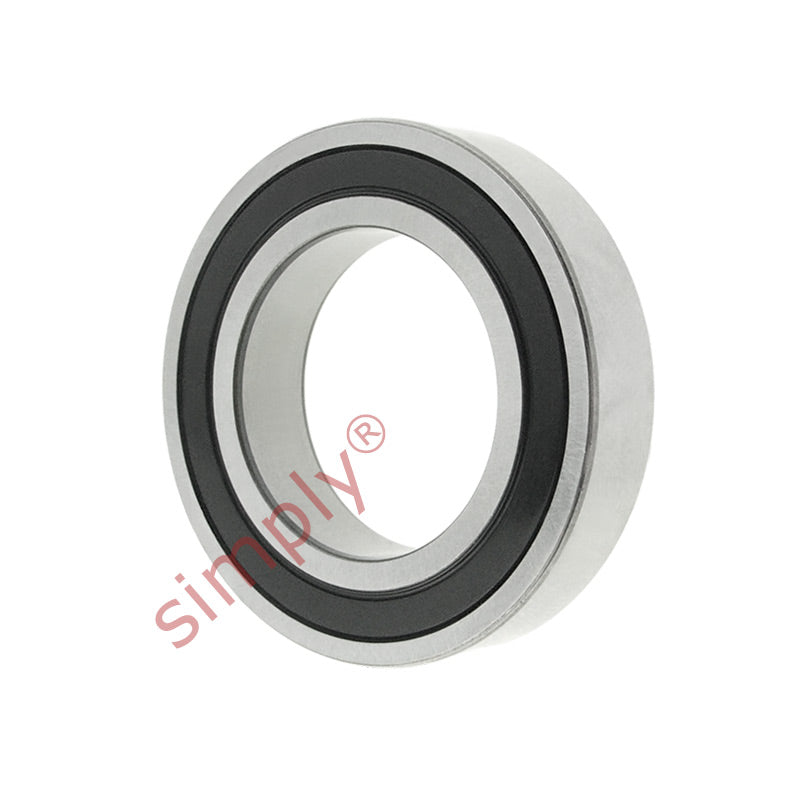

FAG 69002RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 10x22x6mm
Equivalent to: 6900NSEC3 6900DUC3 6900RSC3 6900RSHC3 6900PC3 6900RSRC3 6900LUC3 61900NSEC3 61900DUC3 61900RSC3 61900RSHC3 61900PC3 61900RSRC3 61900LUC3 69002NSEC3 6900DDUC3 69002RSC3 69002RS1C3 69002RSHC3 6900PPC3 6900LLU 619002NSEC3 61900DDUC3 619002RSC3 619002RS1C3 619002RSHC3 61900PPC3 619002RSRC3 61900LLUC3
Out of stock
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Width:
- 6mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 10mm |
|---|---|
| D | 22mm |
| B | 6mm |
| Dynamic load C | 2.08 kN |
| Static load Co | 0.85 kN |
| Fatigue load limit Pu | 0.036 kN |
| Reference speed | 75000 rpm |
| Limiting speed | 20000 rpm |
| Mass | 0.01 kg |
| d1 | 14.8mm |
| D2 | 22.6mm |
| r1r2 min | 0.3mm |
| da min | 12 |
