SKU: 6815-ZZ/C3-NACHI

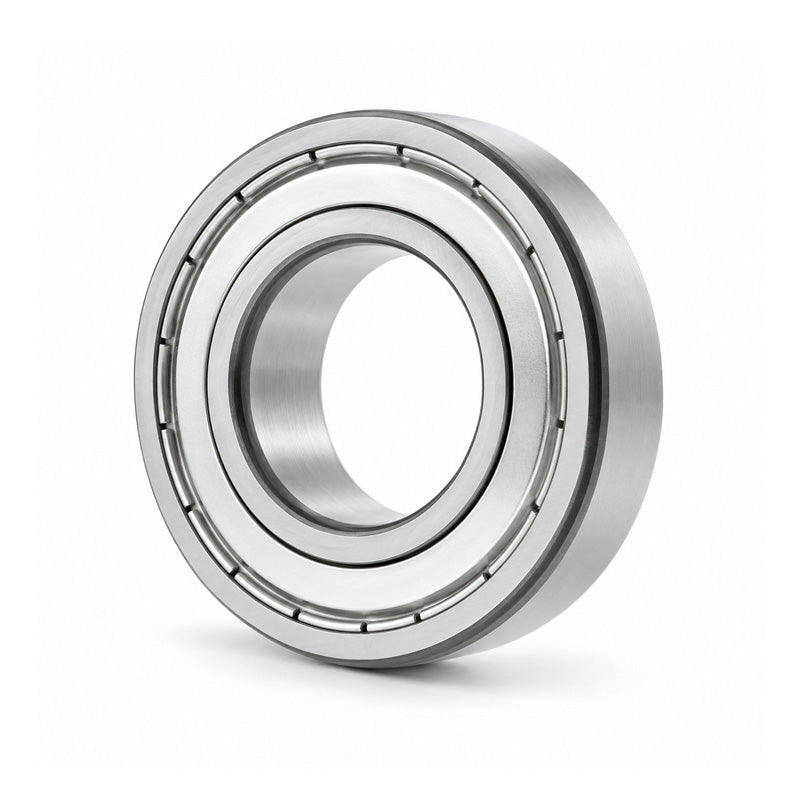

NACHI 6815ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 75x95x10mm
NACHI 6815ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 75x95x10mm
Equivalent to: 6815ZZEC3 68152ZC3 6815.2ZC3 6815KDDC3 6815DDC3 68152ZRC3 6815FFC3 61815ZZEC3 61815ZZC3 618152ZC3 61815.2ZC3 61815KDDC3 61815DDC3 618152ZRC3 61815FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 95mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 75mm |
|---|---|
| Outside Diameter D | 95mm |
| Width B | 10mm |
| Min radius r | 0.6mm |
| Dynamic load | 12500 kN |
| Static load | 12800 kN |
| Max speed | 6500 rpm |
| da min | 79mm |
| Da max | 91mm |
| ra max | 0.6mm |
| Weight | 0.145 kg |
