SKU: 681/672D/X1S681-TIM

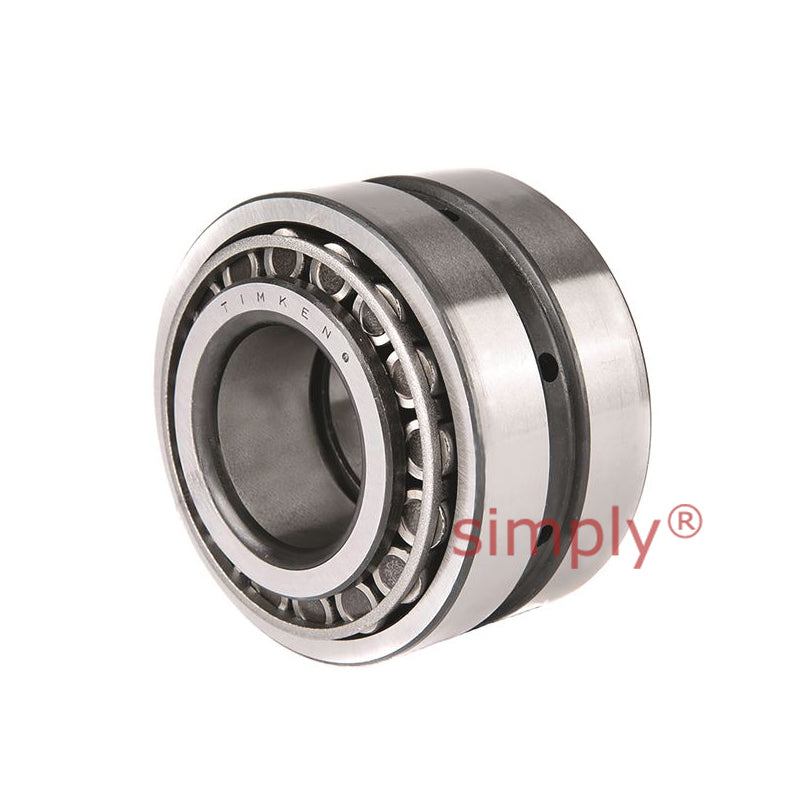

Timken 681/672D/X1S681 TDO Double Outer Race Taper Roller Bearing 3.625x6.625x3.625x2.75 inch
Timken 681/672D/X1S681 TDO Double Outer Race Taper Roller Bearing 3.625x6.625x3.625x2.75 inch
Out of stock
Description
Description

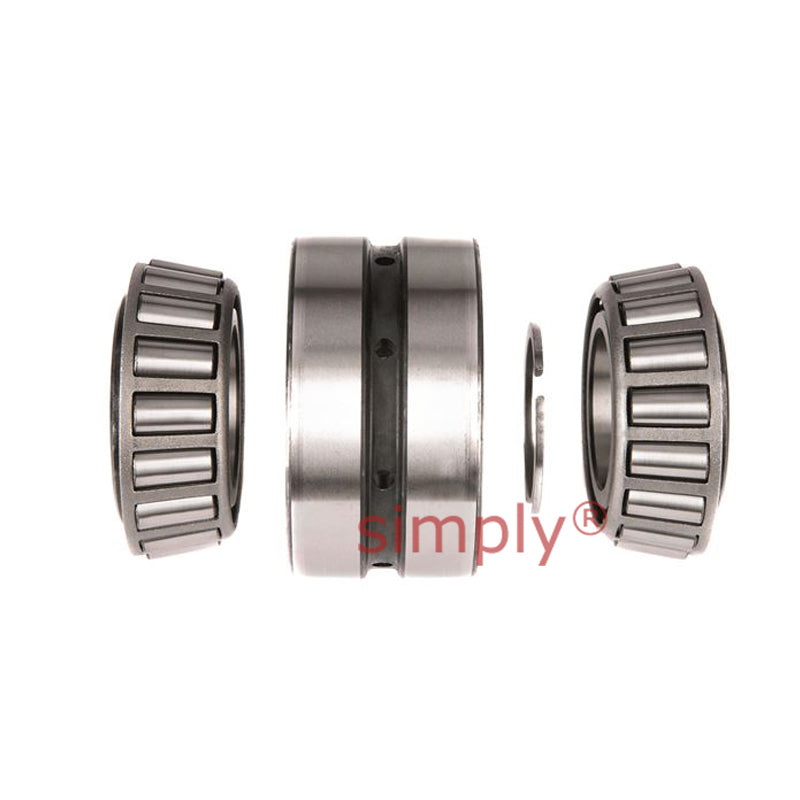

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 92.08mm = 3.625 inch
- Outside Diameter:
- 168.28mm = 6.625 inch
- Width:
- 92.08mm = 3.625 inch
Technical
Technical
| d | 92.075mm = 3.625 inch |
|---|---|
| D | 168.275mm = 6.625 inch |
| T | 92.075mm = 3.625 inch |
| C | 69.85mm = 2.75 inch |
| Dynamic (1) C1 | 427000N |
| Factors (5) e | 0.47 |
| Factors (5) Y1 | 1.43 |
| Factors (5) Y2 | 2.14 |
| Dynamic (2) C90 | 63500N |
| Dynamic (2) Ca90 | 51200N |
| Dynamic (2) C90(2) | 111000N |
| Factors (5) K | 1.24 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 110mm = 4.33 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 160mm = 6.3 inch |
| G1 | 182 |
| G2 | 37.2 |
| Cg | 0.1056 |
