SKU: 6809-ZZE/C3-NACHI

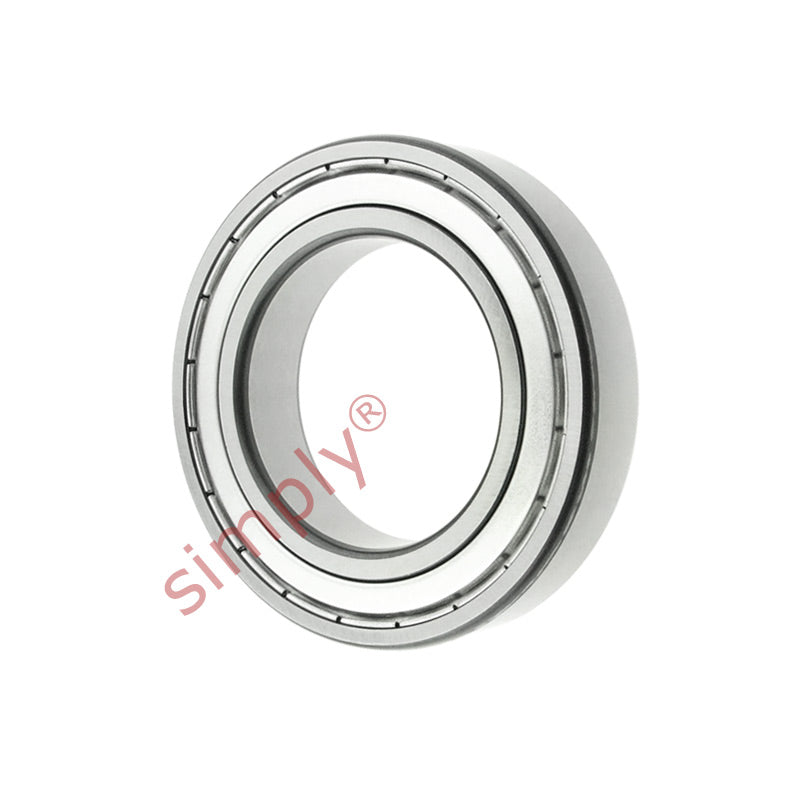

NACHI 6809ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 45x58x7mm
NACHI 6809ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 45x58x7mm
Equivalent to: 6809ZZC3 68092ZC3 6809.2ZC3 6809KDDC3 6809DDC3 68092ZRC3 6809FFC3 61809ZZEC3 61809ZZC3 618092ZC3 61809.2ZC3 61809KDDC3 61809DDC3 618092ZRC3 61809FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 58mm |
| Width B | 7mm |
| Min radius r | 0.3mm |
| Dynamic load | 5350 kN |
| Static load | 4900 kN |
| Max speed | 11000 rpm |
| da min | 47mm |
| Da max | 56mm |
| ra max | 0.3mm |
| Weight | 0.04 kg |
